Compact Fire Engine

Compact Fire Engine

Kleineinsatzfahrzeuge

Compact fire engine with box body

technical specifications

Structure

  • Aluminium profile system covered with aluminium sheet plates and closed by shutter system
  • Foladable steps
  • Rear lifting platform loading capacity of 750 kg
  • LED periphery lighting integrated into the eaves

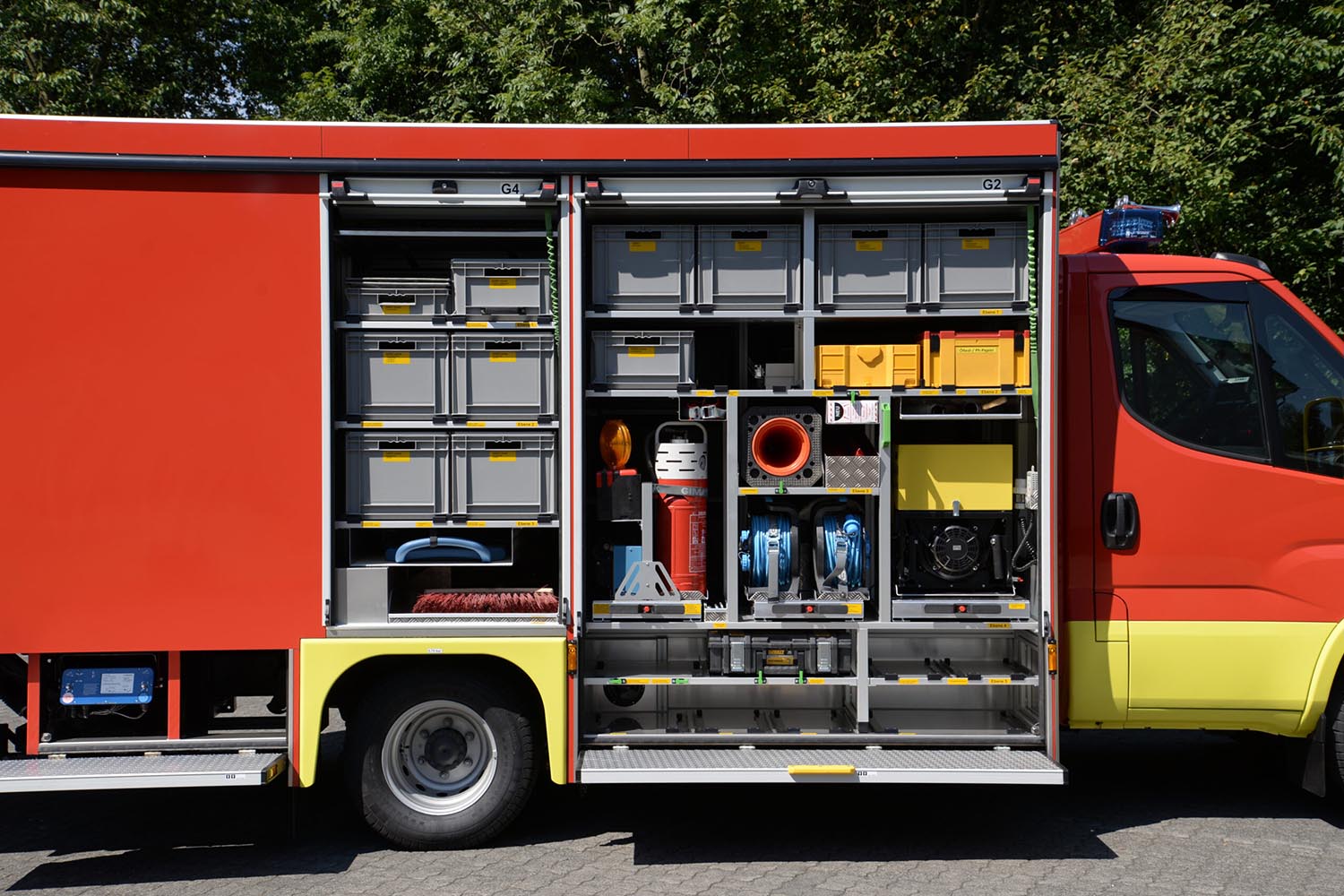

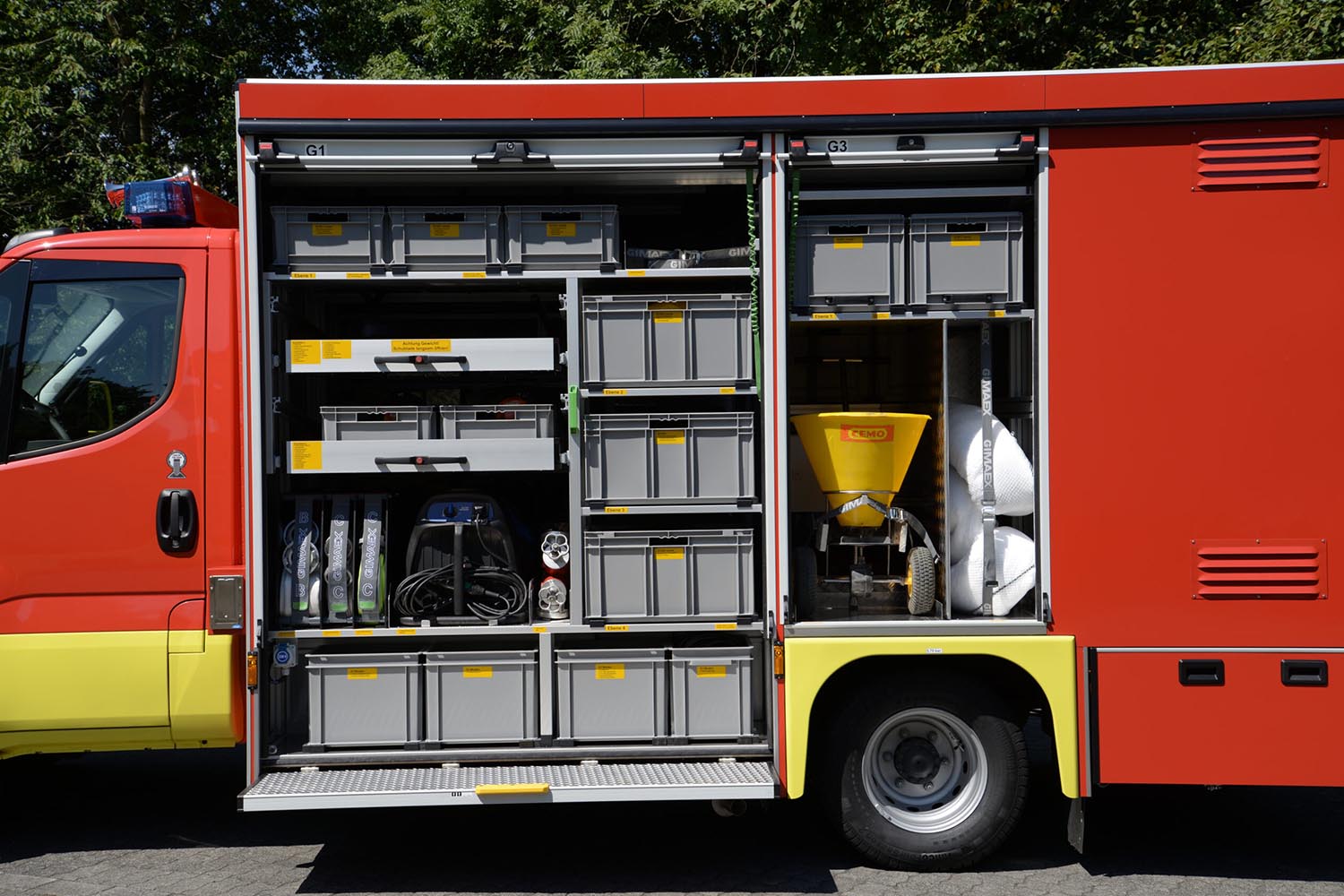

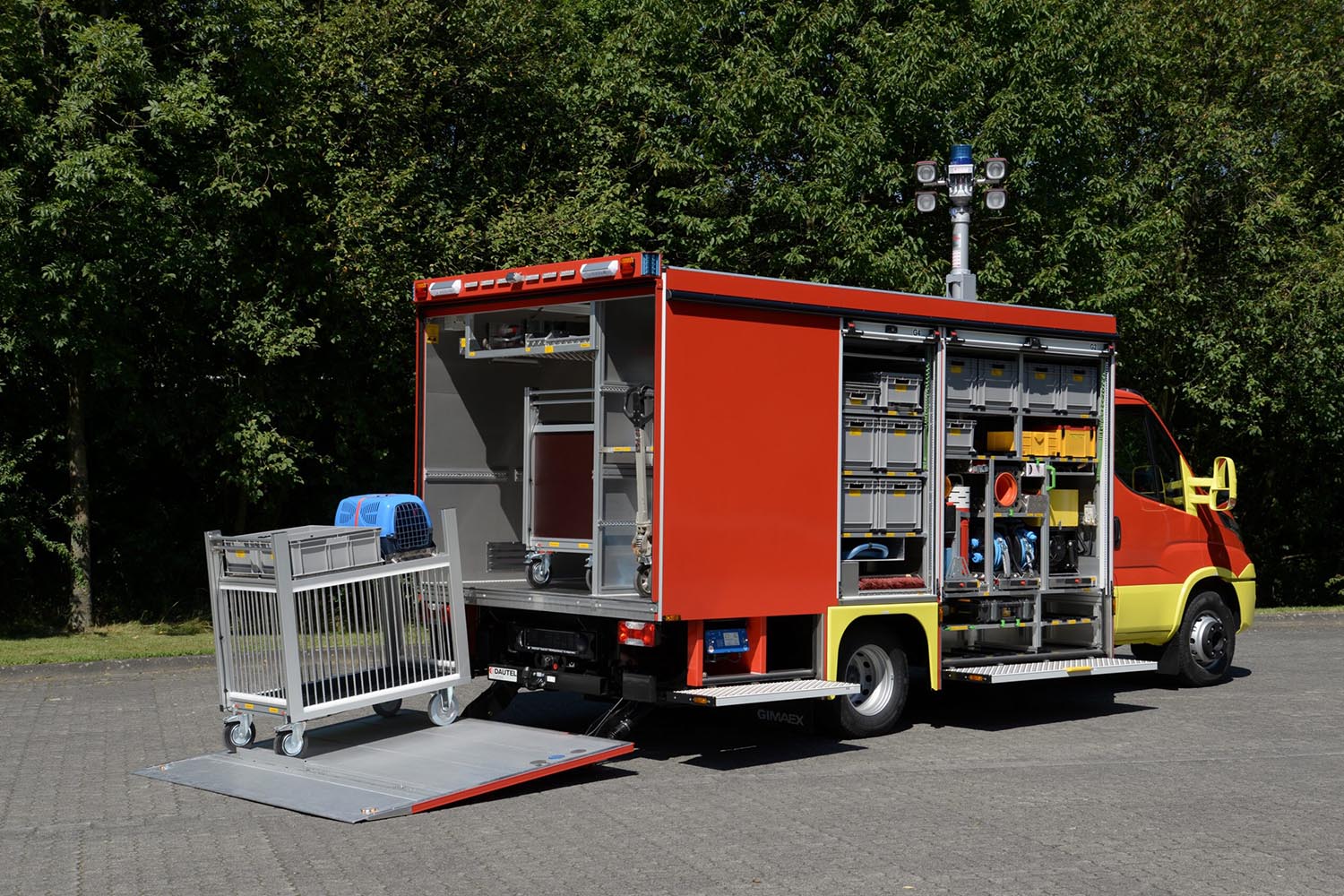

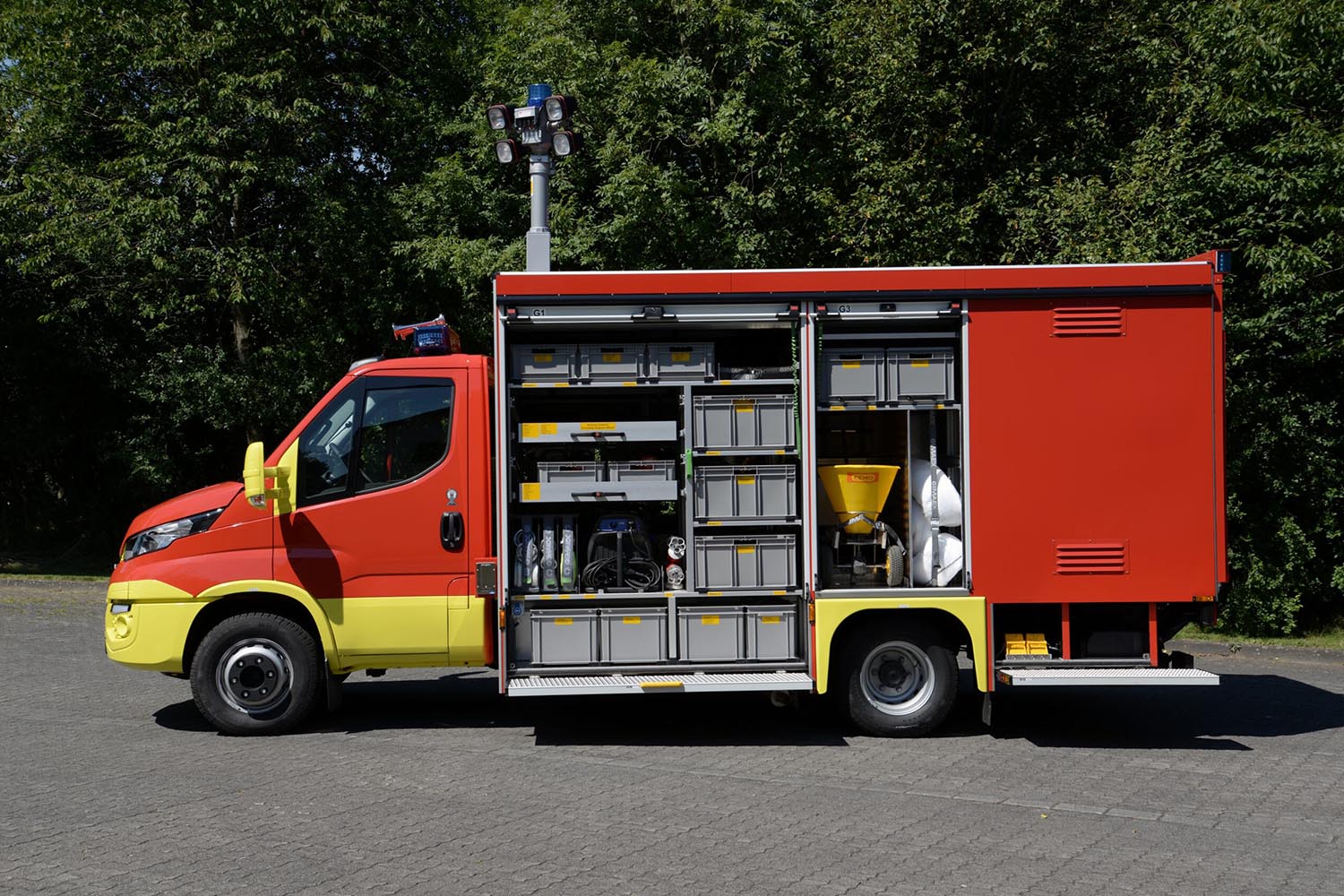

1470 Kleinalarmfahrzeug 001
1470 Kleinalarmfahrzeug 001
1470 Kleinalarmfahrzeug 002
1470 Kleinalarmfahrzeug 002
1470 Kleinalarmfahrzeug 003
1470 Kleinalarmfahrzeug 003
1470 Kleinalarmfahrzeug 004
1470 Kleinalarmfahrzeug 004

The data at a glance

IVECO 70C21 ABChassis
150 kW (250 HP) Euro 5Engine Power
7.200 kgpermissible total weight

Product name Compact Fire Engine – 1470
Chassis IVECO 70C21 AB
Machine status New
Engine power 150 kW (250 HP) Euro 5
Length [in mm] 6800
Width [in mm] 2500
Height [in mm] 2860
Wheelbase [in mm] 3750
Gross vehicle weight [in kg] 7200

Year of construction
2015

  • Fire ighting equipment according to local requirements
  • Light mast "Roof Robot" with roof passage, 4 x 35 W/ 12 V Halogen Xenon headlights and remote control
  • Trolley "Animal Rescue"
  • Trolley "Universal"
  • Pallet truck
  • Generator 9,5 kVA
  • Vaccum cleaner
  • Submersible pump TP 4/1
  • 2 x Leitungstrommel 230 V
  • Chainsaw
  • Special signalling equipment" DBS 3000 LED"
  • Accident data memories
  • Multipurpose ladder
  • Rear view video system
  • Oil binding agent - spreader
