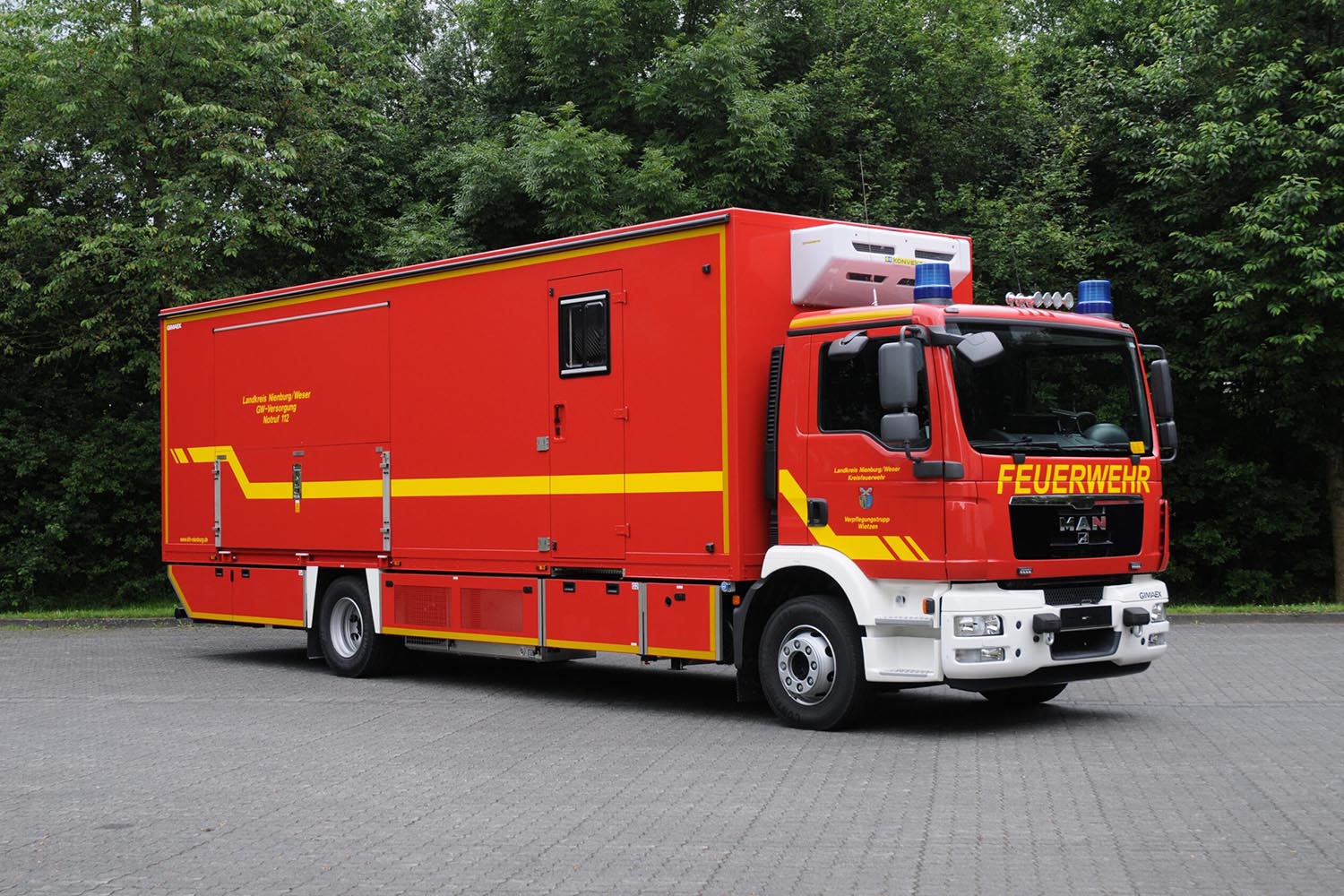

Special Truck Kitchen
Sonder-Gerätewagen
- Sandwich box body in special design
- Support of the superstructure

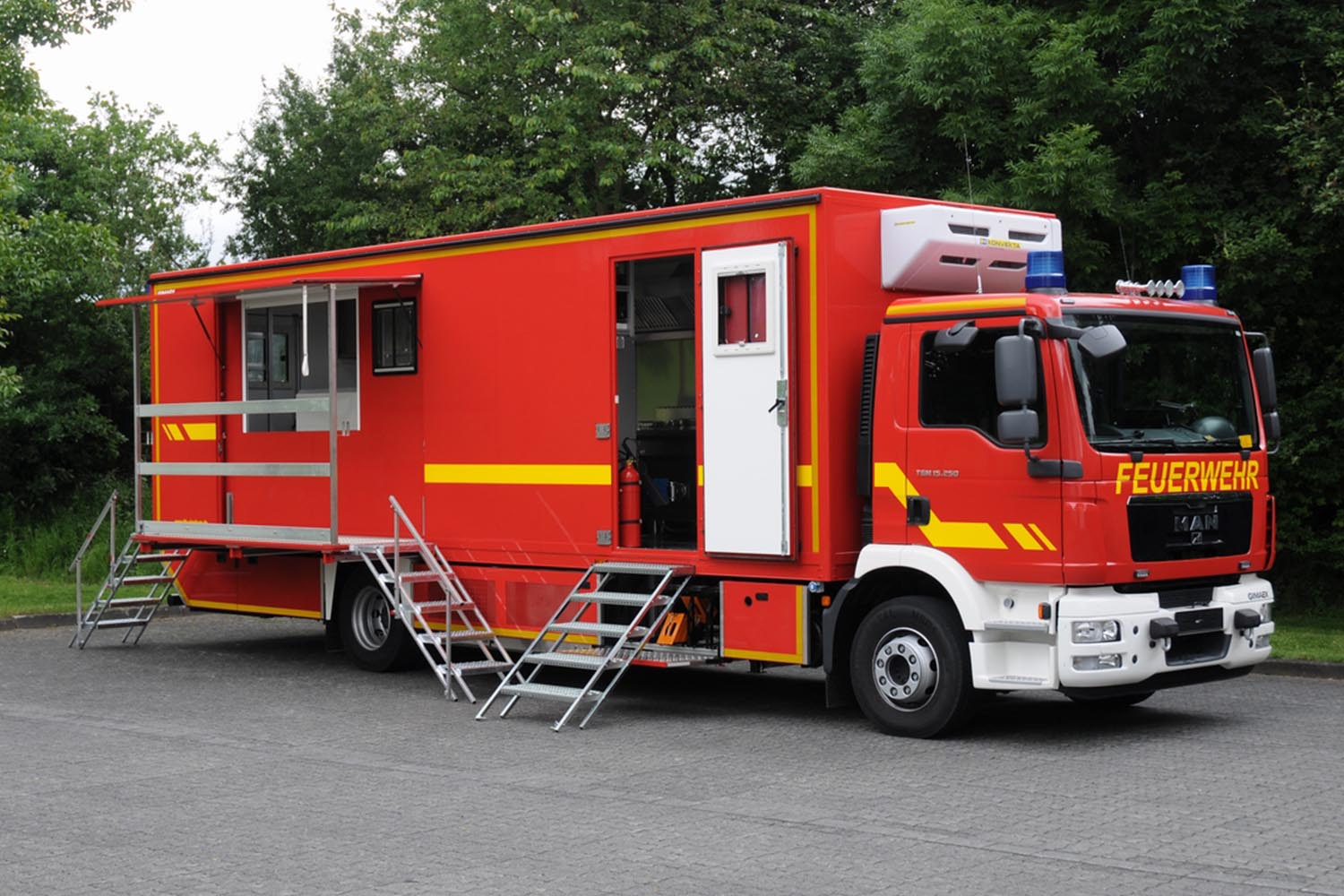

- Foldable side panel

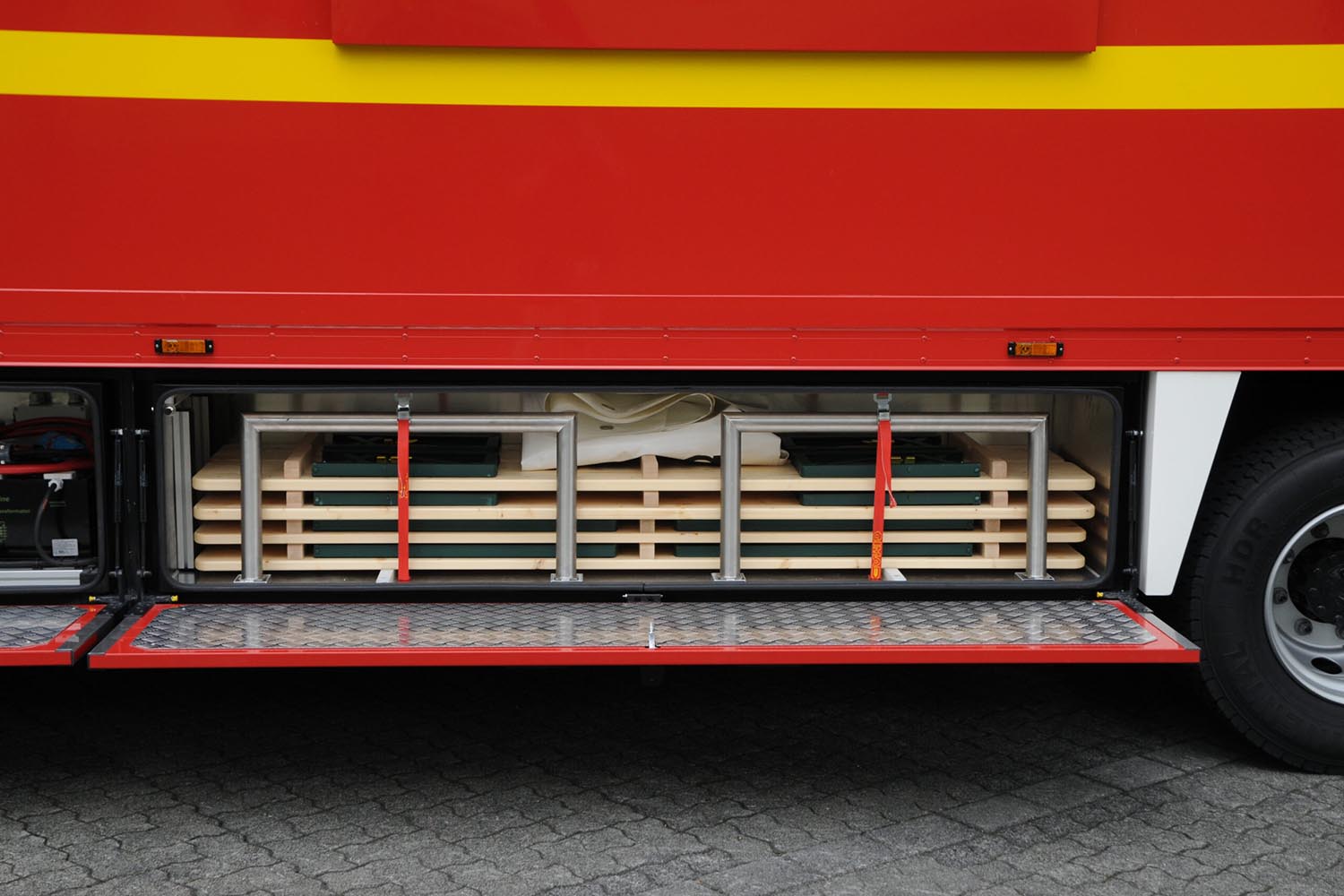

- Underbody box
Structure

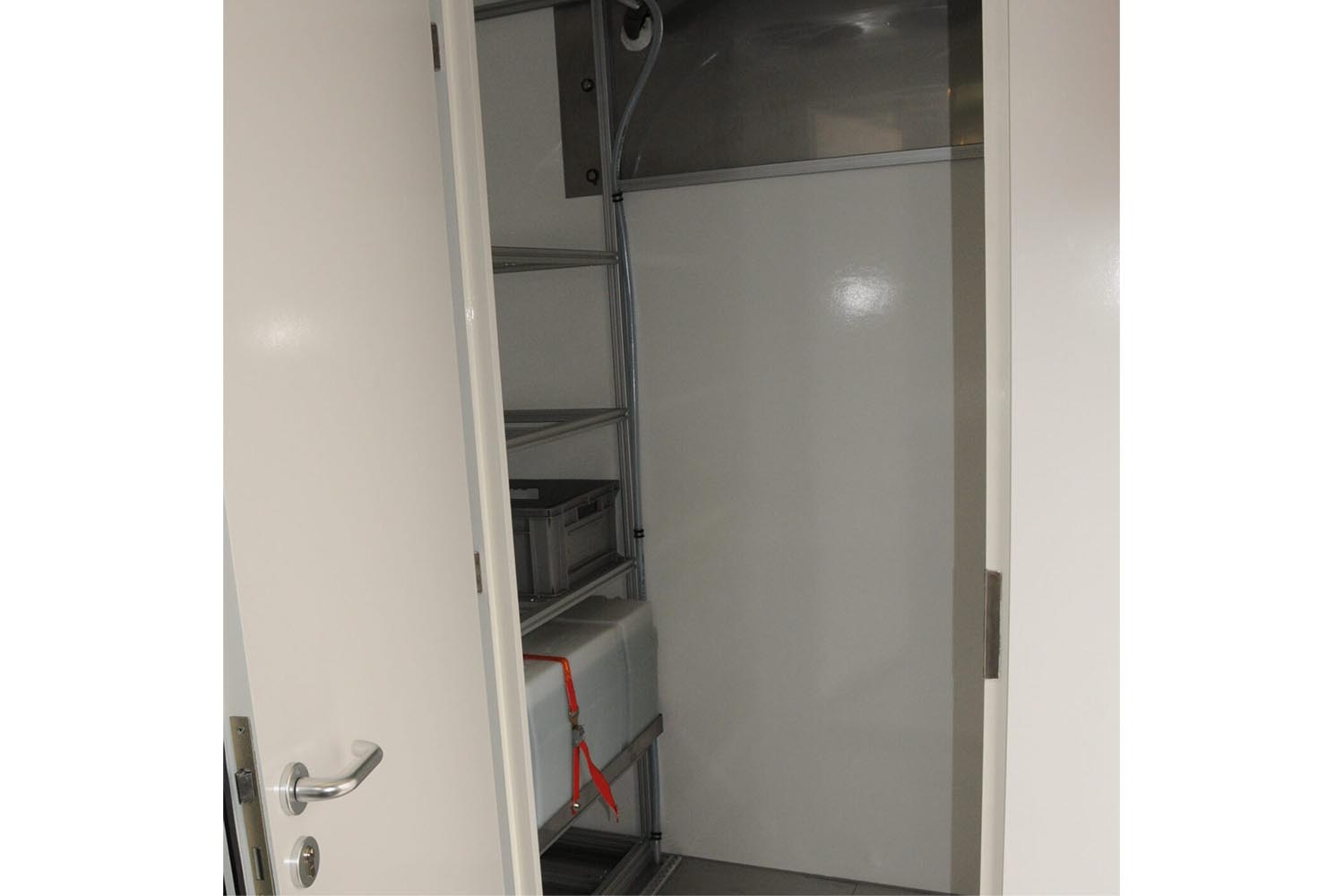

COOLING CELL
- In the front area of the superstructure, approx. 1 m long , temperature cooling approx. 4 - 6 ° C
EQUIPMENT KITCHEN

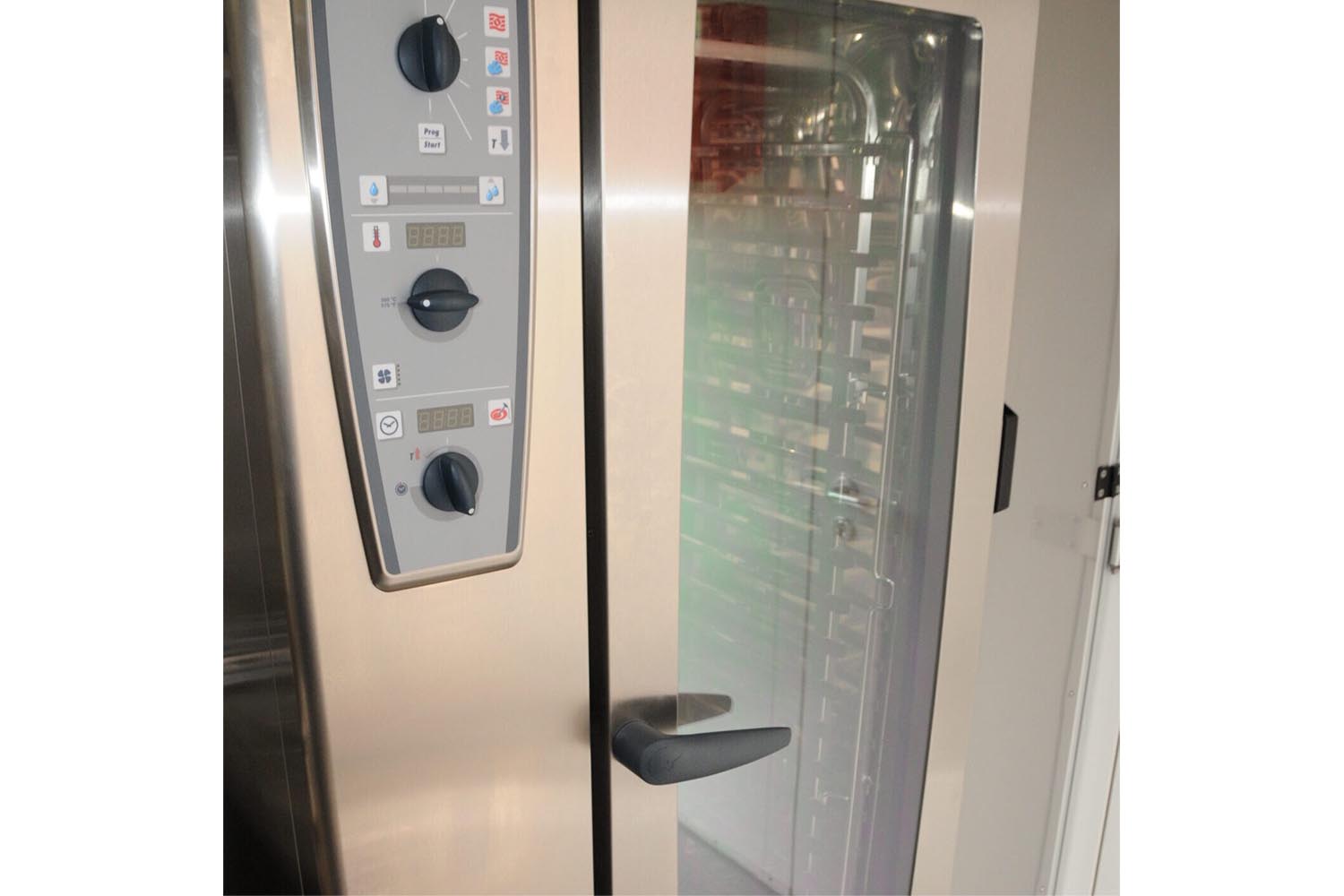

- 1 x convection oven (gas operated)
- 1 x dishwasher

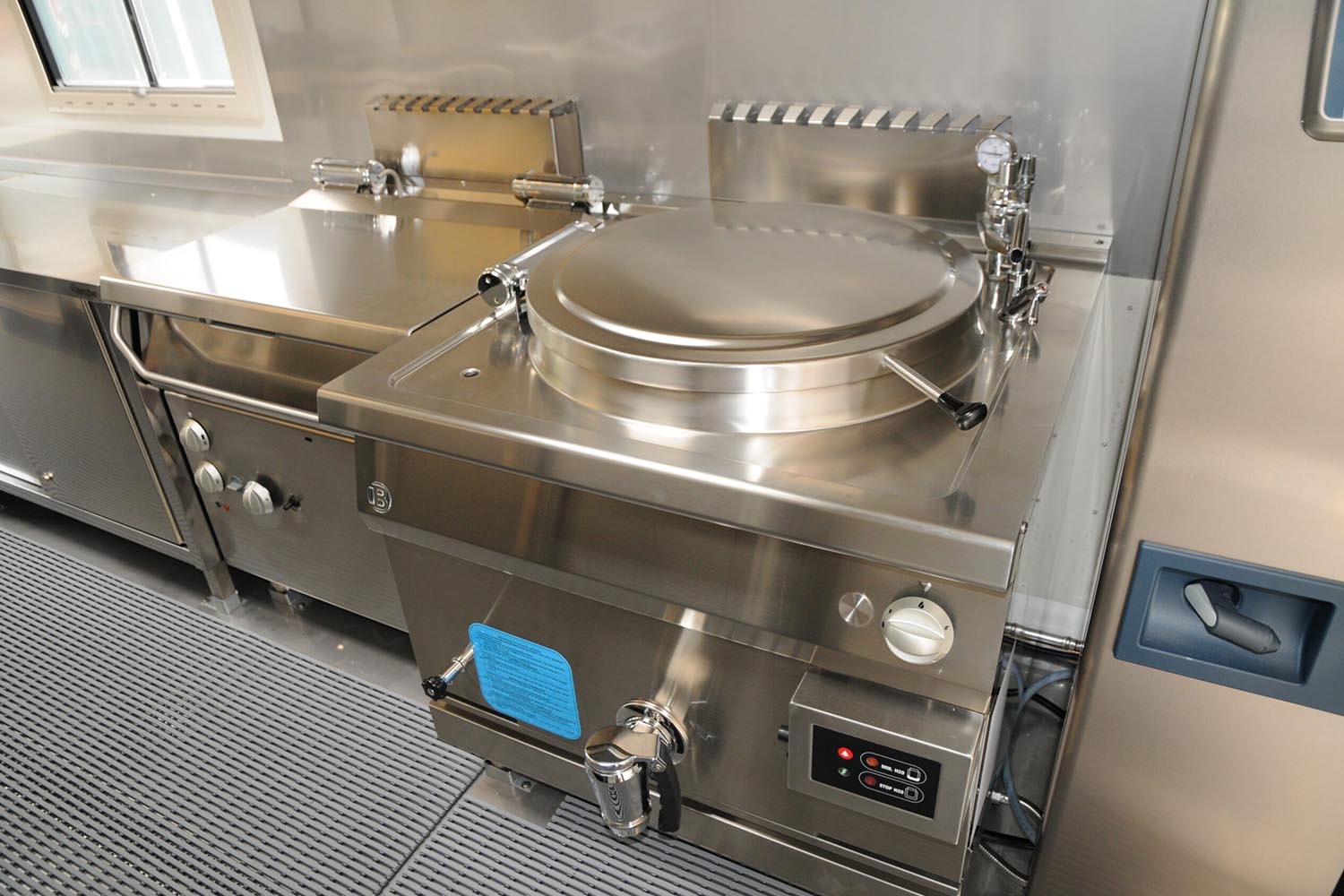

- 1 x cooking kettle indirectly heated, 150 l (gas operated)

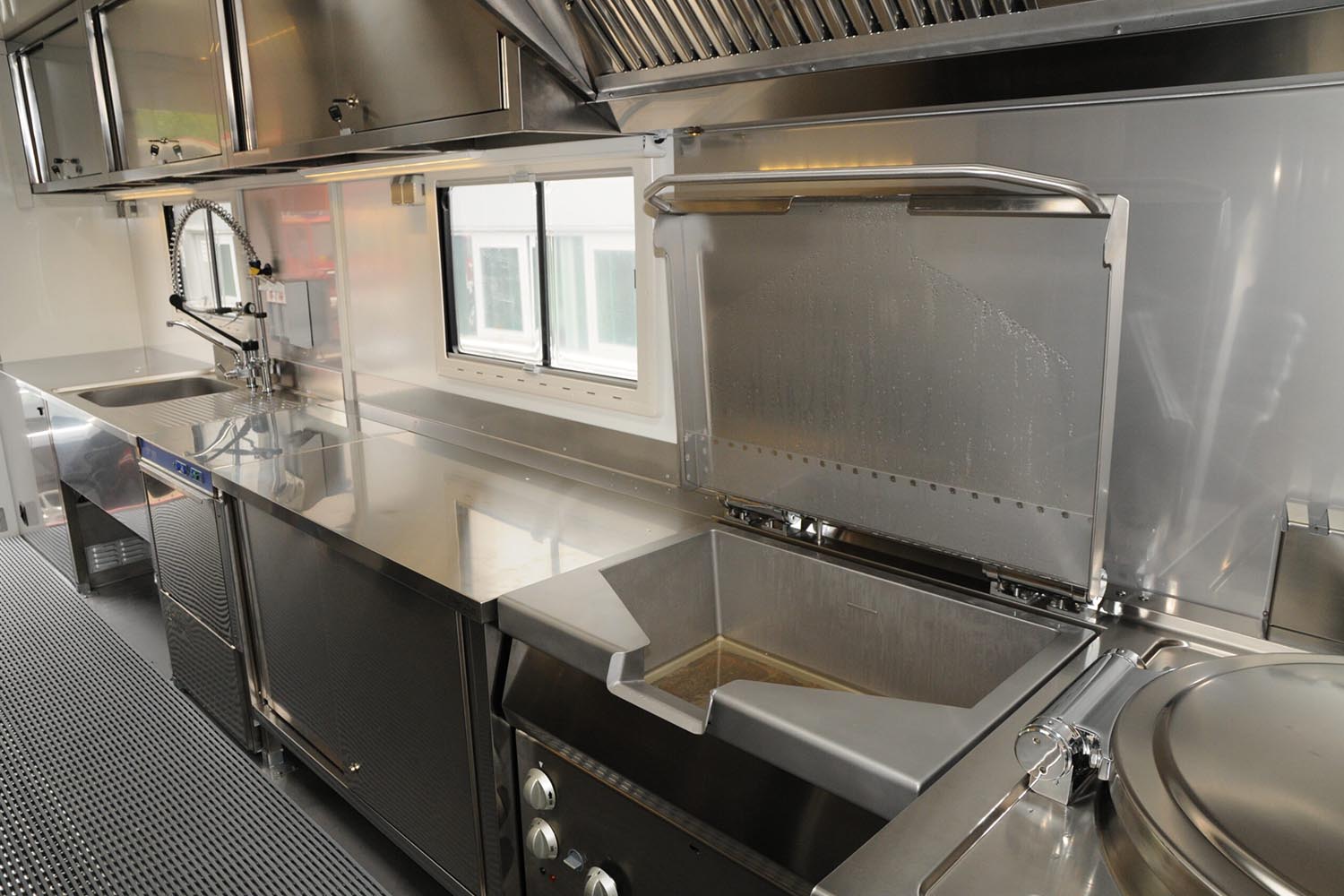

- 1 x tilting frying pan (gas operated)
- 1 x extractor hood with motor, width 2. 200 mm
- Wall hanging and working cabinets with sliding doors made of stainless steel

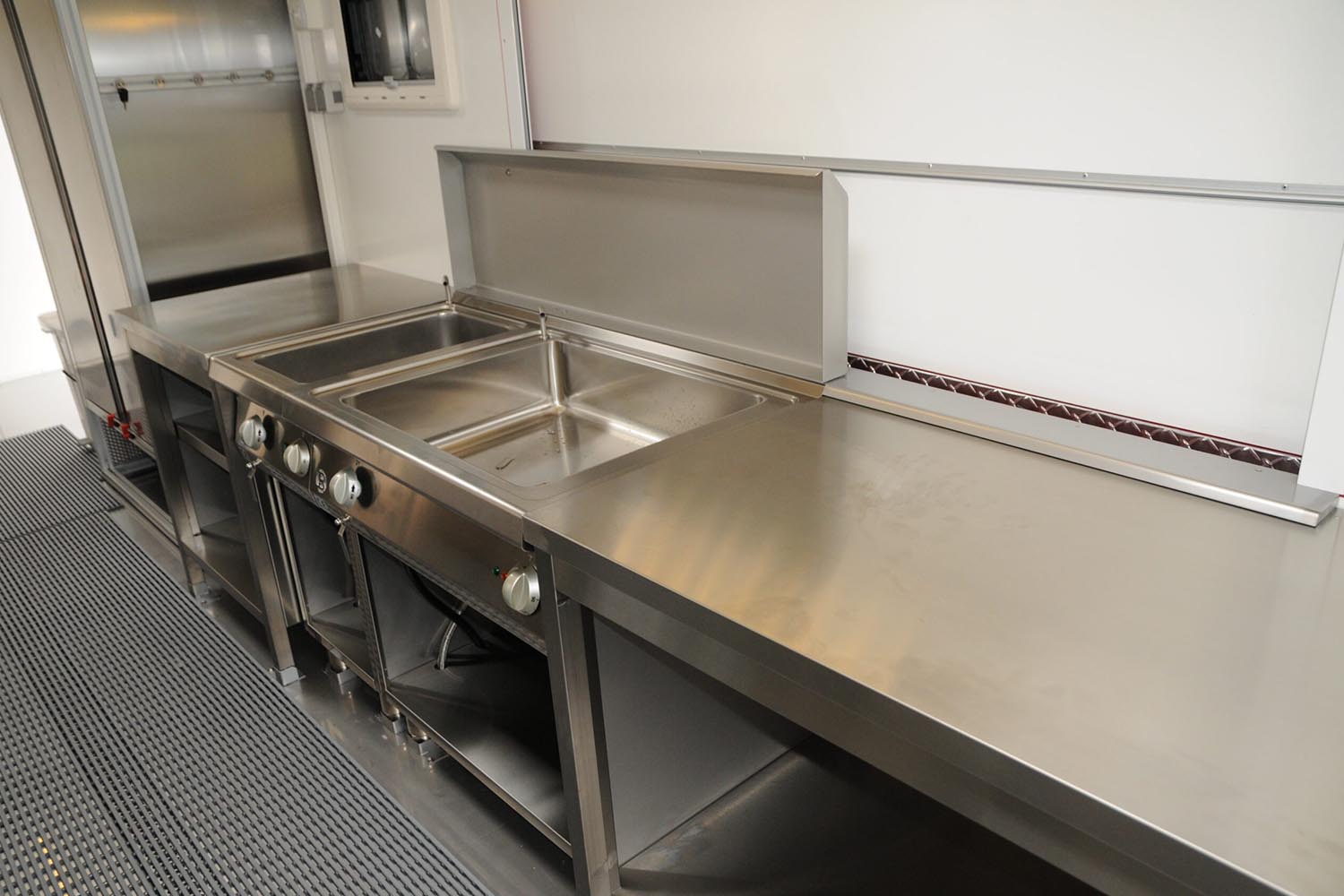

- Heated warming basin for 3 standard containers
- Sink with flow heater
- Stainless steel worktops
- Fresh water pump 230 V for water supply
- Fresh water tank 2 x 200 l
- Waste water tank 450 l
- Air conditioning
FURTHER EQUIPMENT FEATURES
- Parking heater 5 kW
- Diesel generator with water-cooled engine 20 kW
The data at a glance
MAN TGM 15.250 4 X 2 BLChassis
184 kW ( 250 HP) EURO 5Engine Power
15.000 kgpermissible total weight
| Product name | Special Truck Kitchen – 3718 |
|---|---|
| Chassis | MAN TGM 15.250 4 X 2 BL |
| Machine status | New |
| Engine power | 184 kW ( 250 HP) EURO 5 |
| Length [in mm] | 10440 |
| Width [in mm] | 2500 |
| Height [in mm] | 3490 |
| Wheelbase [in mm] | 5475 |
| Gross vehicle weight [in kg] | 15000 |
Crew
1+2
- four tent sets (1 table and 2 benches)
- light balloon "Powermoon-Profi-1" 1000 W
- Barrier material
- Various kitchen utensils
