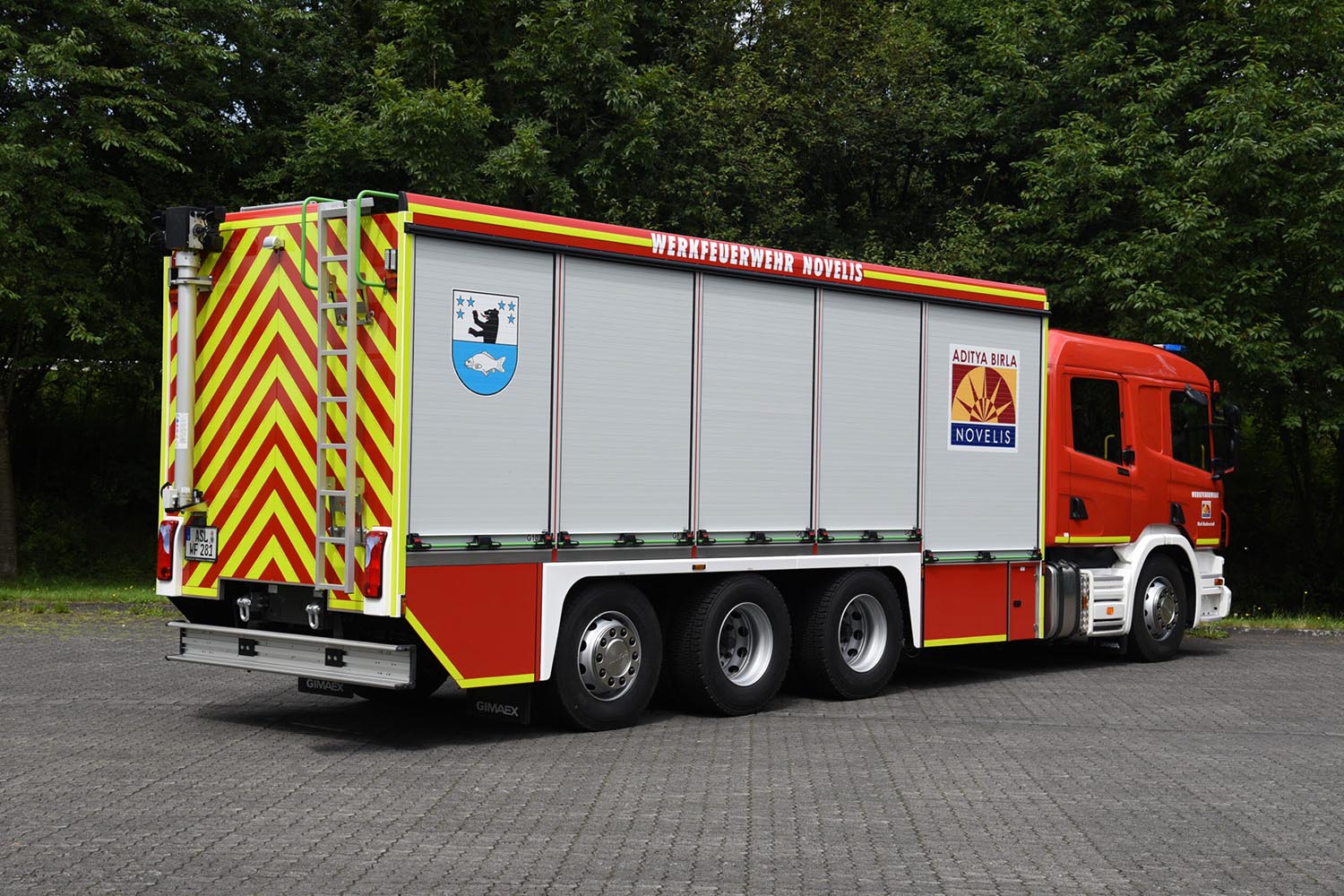

Firefighting Truck "Tro TLF"
Industrielöschfahrzeuge
"AluPrime" bodywork with shutter system
Structure
- "AluPrime" bodywork with shutter system
- 2 x SCBA brackets contrary to the driving direction
- 4 x SCBA brackets in the driving direction

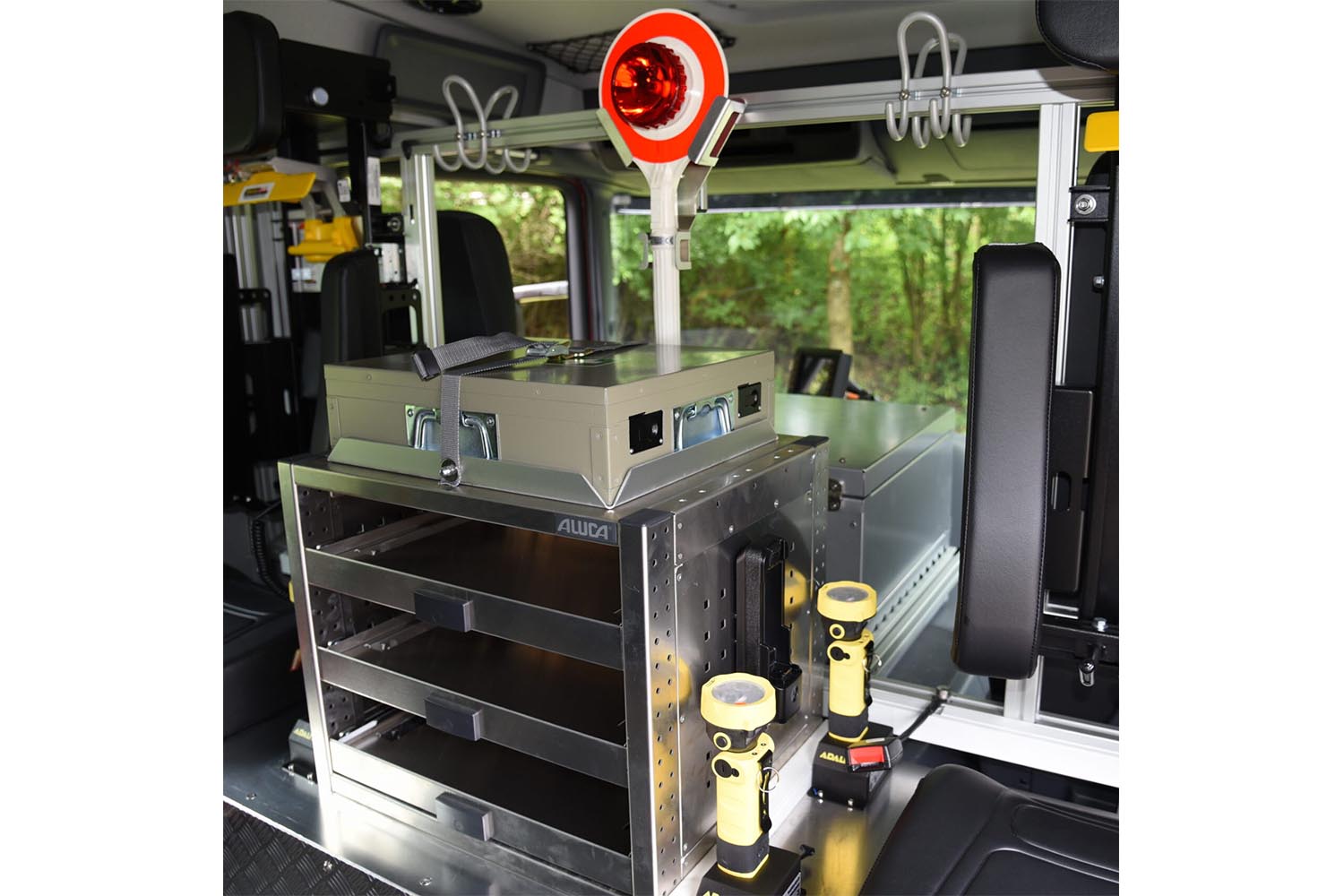

- "Rapid Reaction Center" equipment cabinet in the crew cabin
The data at a glance
Scania P 360 LB 8x4 mit CP 31 MannschaftskabineChassis
264 kW (360 HP) EURO 5Engine Power
10.770 mmLength
2.500 mmWidth
3.400 mmHeight
4500Wheelbase
32.000 kgpermissible total weight

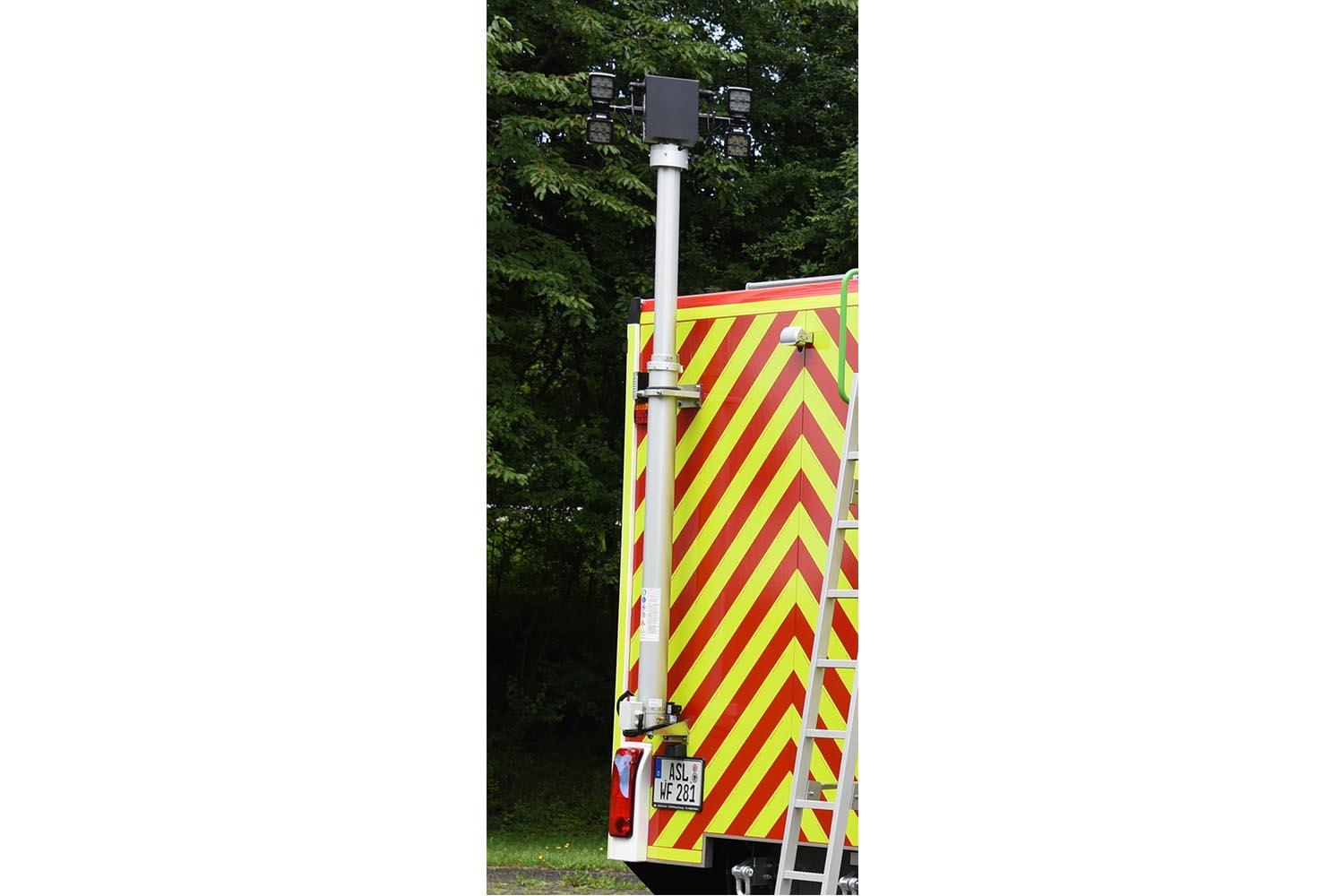

4 x 50 W LED / 24 V floodlightsLight mast
| Product name | Firefighting Truck "Tro TLF" – 81734 |
|---|---|
| Chassis | Scania P 360 LB 8x4 mit CP 31 Mannschaftskabine |
| Machine status | New |
| Engine power | 264 kW (360 HP) EURO 5 |
| Length [in mm] | 10770 |
| Width [in mm] | 2500 |
| Height [in mm] | 3400 |
| Wheelbase [in mm] | 4500 |
| Gross vehicle weight [in kg] | 32000 |
| Light mast | 4 x 50 W LED / 24 V floodlights |
Powder extinguishing system
PLA 250 „ABC“ inkl. elektr. Fast attack reel S 20 / 50 m
Powder extinguishing system
NDPLA „Metall“500 incl. electr. fast attack device
Carbon dioxide extinguishing system
KSR 4000 incl. 1 electric fast attack reell 50 m and 2 x large pressure outlets for stationary extinguishing systems
Operation of extinguishing system
– 7″ Display in the driver's cab for operating the fire-fighting functions - 12″ display at the rear for operating the extinguishing system
- Chemical protective suits and heat protective suits
- Foldable tank open, 3,000 l
- Explosion proof drum pump motor 540 W (Atex)
- Pump station V4A
- CO² hoses stored on the roof
