Large Firefigting Vehicle GTLF 9000

Kommunale Löschfahrzeuge

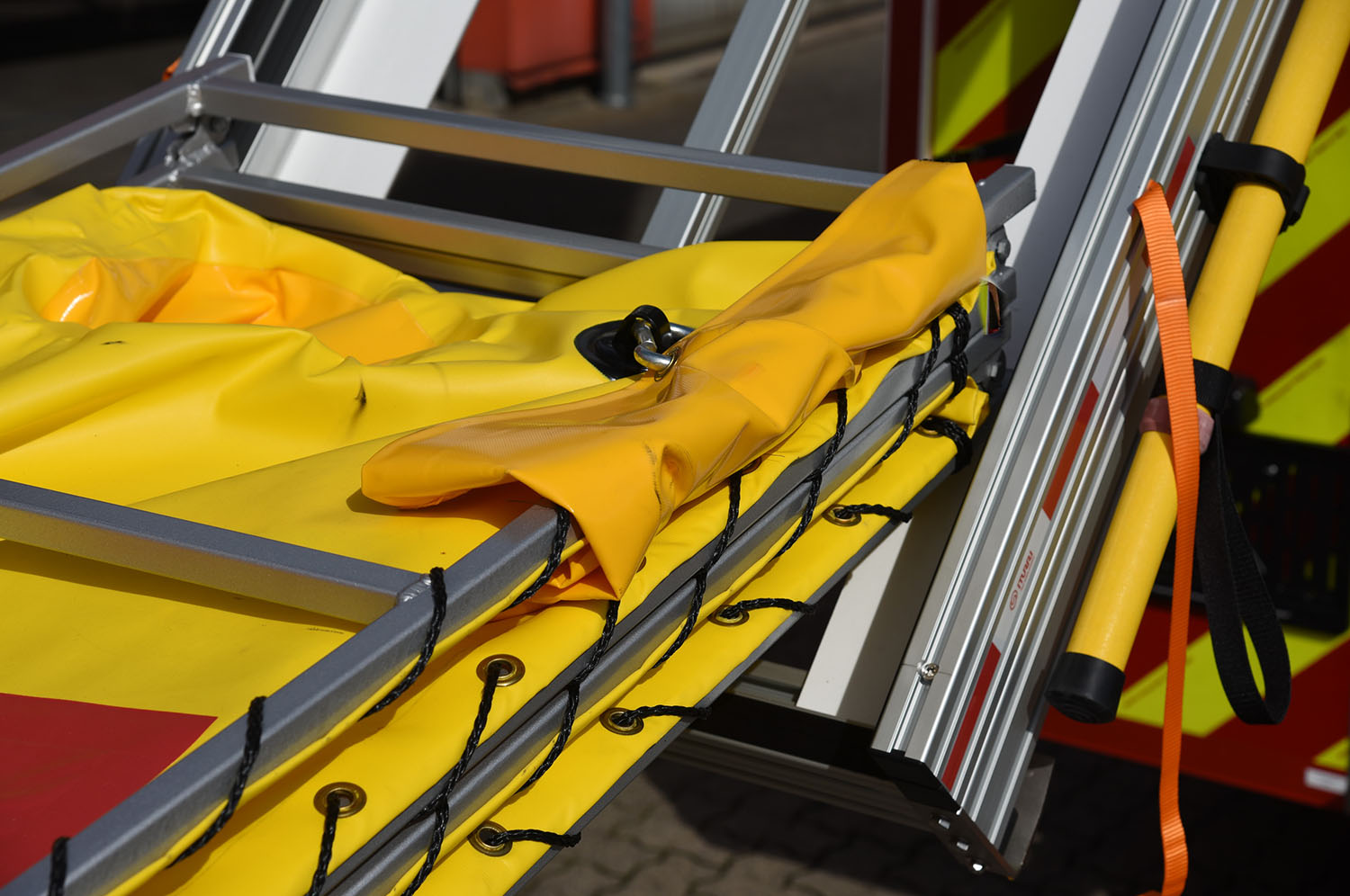

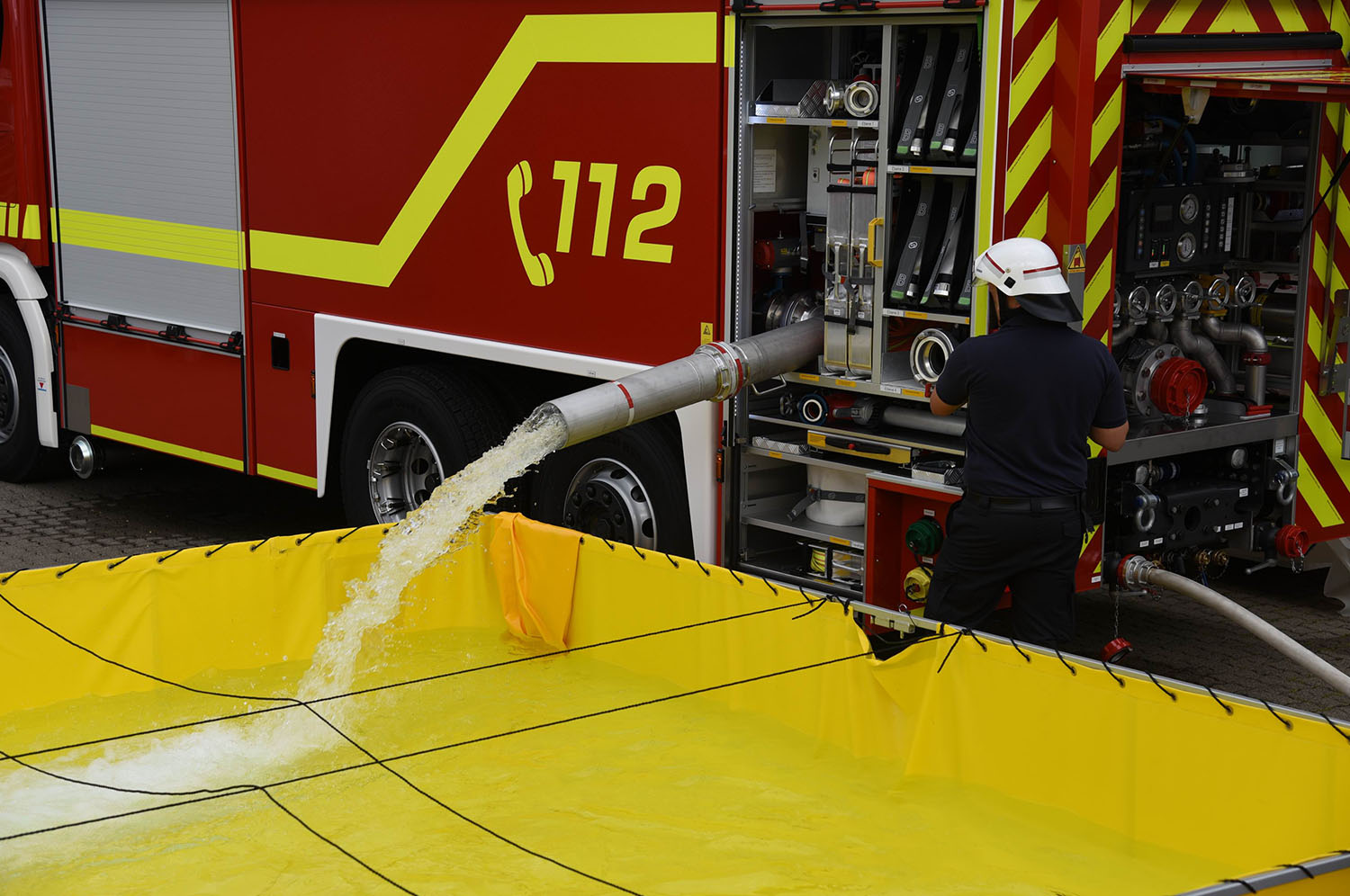

The GTLF 9000 on a three-axle Scania chassis combines high extinguishing agent capacity, powerful pumping performance, and efficient operational logistics. Equipped with a 9,000-litre water tank, a 750-litre foam tank, and a high-performance fire pump, the vehicle is ideally suited for large-scale fires, industrial incidents, and wildland firefighting. An integrated rapid discharge system also enables quick filling of portable folding tanks during shuttle operations.

technical specifications

Structure

"Alu-Prime" bodywork with shutter system and accessible roof
The bodywork is separated into 3 parts:
- front equipment compartment module
- water-/ foam tank
- rear pump module
Storage of 2 SCBAs in the crew cabin
foldable hand rail on the roof
laterally foldable steps
LED periphery lighting
Roof case incl. LED lighting
360° rear view camera system

The data at a glance

302 kW (410 HP) EURO 6Engine Power

3950 + 1350Wheelbase

26.000 kgpermissible total weight

9.000 lWater tank

Product name	Large Firefigting Vehicle GTLF 9000 – 81837
Chassis	SCANIA G 410 B6x2x4NA
Machine status	New
Engine power	302 kW (410 HP) EURO 6
Length [in mm]	9150
Width [in mm]	2550
Height [in mm]	3300
Wheelbase [in mm]	3950 + 1350
Gross vehicle weight [in kg]	26000
Pump	FPN 10-4000
Operation extinguishing system	Pump control according to "AGBF
Pressure control	2 x IMix proportioner
Water tank [in l]	9000
Foam [in l]	750
