Firefighting Vehicle TLF 60

Industrielöschfahrzeuge

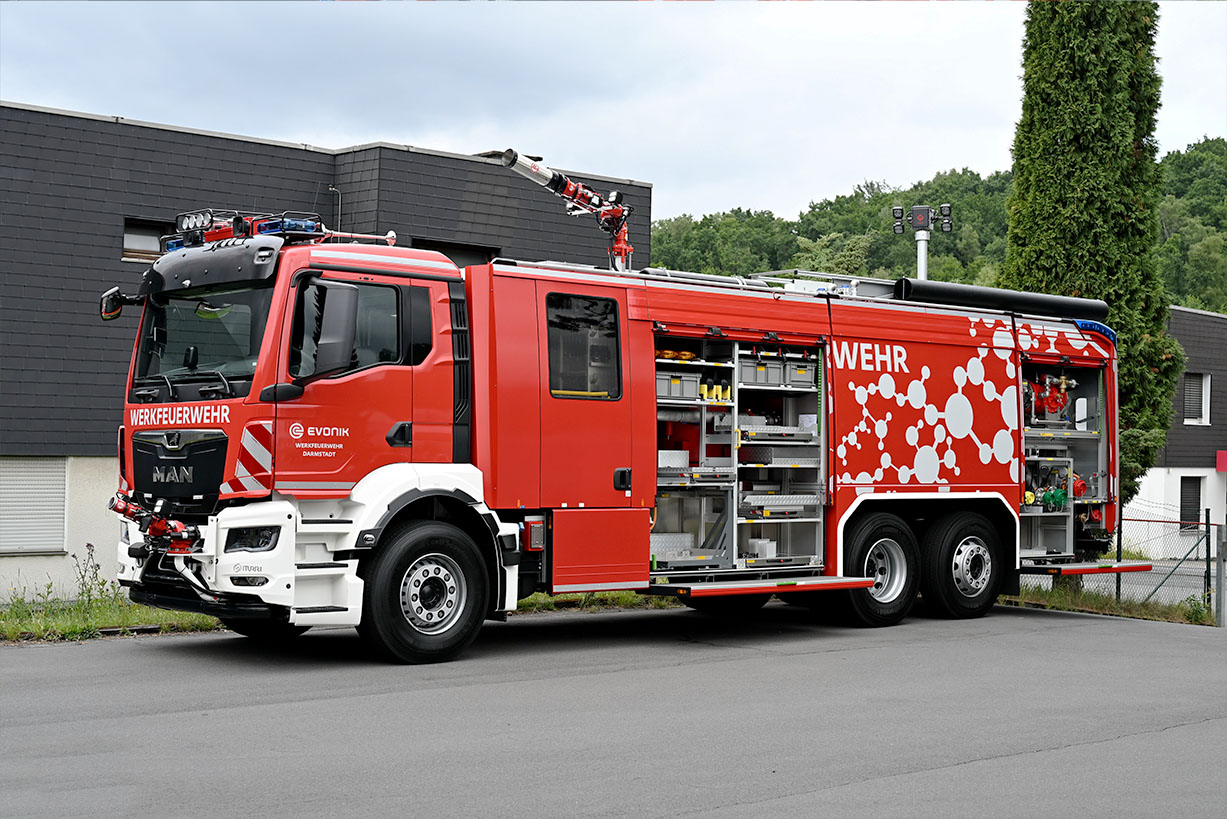

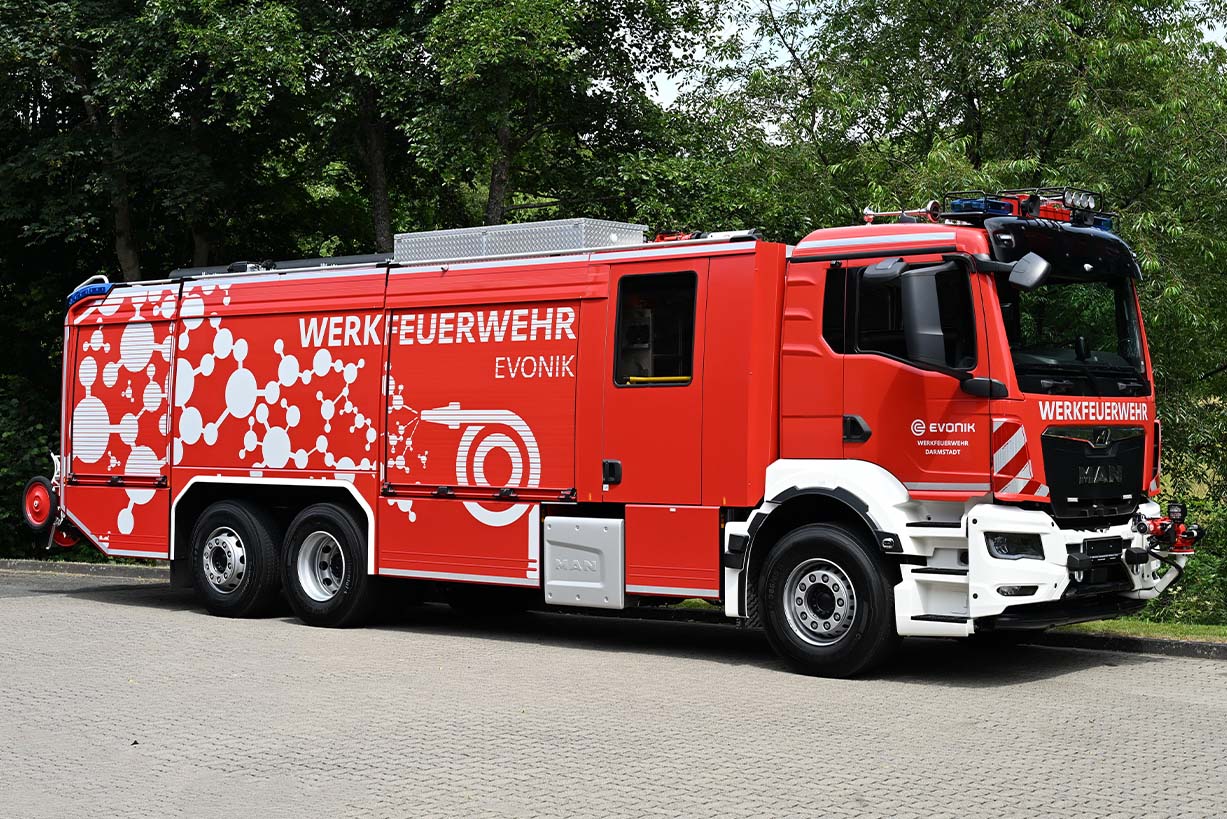

The Firefighting Vehcile (TLF 60) on a MAN chassis combines high performance with a well-designed modular body concept. The three-part “Alu-Prime3” body consists of a front equipment module with two roller shutters and a low-mounted pull-out compartment, a water/foam tank module, and a rear pump module with three roller shutters. The integrated crew cab and practical arrangement of all components ensure maximum functionality and efficient operations in the field.

technical specifications

Structure

"Alu-Prime3" module structure with integrated cabin
The structure is divided into 3 parts:
- Front equipment compartment module with 2 roller shutters, including deep-drawn tray with fold-down steps
- Water/foam tank module

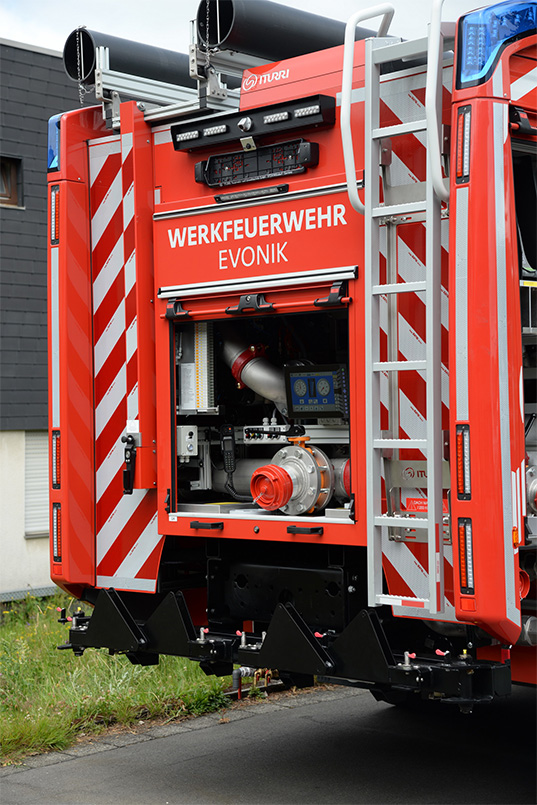

- Rear pump module with 3 roller shutters and crossbar boxes with steps
2 seats facing backwards, pre-equipped for the installation of compressed air breathing apparatus
2x compressed air breathing apparatus storage compartments, mounted on the middle seats facing forwards
Aluminium roof box incl. LED lighting

The data at a glance

MAN TGS 26.520 6x2 BL CHChassis

382 kW (519 HP) EURO 6Engine Power

10.540 mmLength

2.500 mmWidth

3.280 mmHeight

5100Wheelbase

26.000 kgpermissible total weight

FPN 10-6000Pump

Pneumatic light mast equipped with 4 x 50 W (24 V) LED head lightsLight mast

5.500 lWater tank

1.500 lFoam

Product name	Firefighting Vehicle TLF 60 – 81840
Chassis	MAN TGS 26.520 6x2 BL CH
Machine status	New
Engine power	382 kW (519 HP) EURO 6
Length [in mm]	10540
Width [in mm]	2500
Height [in mm]	3280
Wheelbase [in mm]	5100
Gross vehicle weight [in kg]	26000
Pump	FPN 10-6000
Operation extinguishing system	Operation according to AGBF guideline
Light mast	Pneumatic light mast equipped with 4 x 50 W (24 V) LED head lights
Water tank [in l]	5500
Foam [in l]	1500 class A foam
