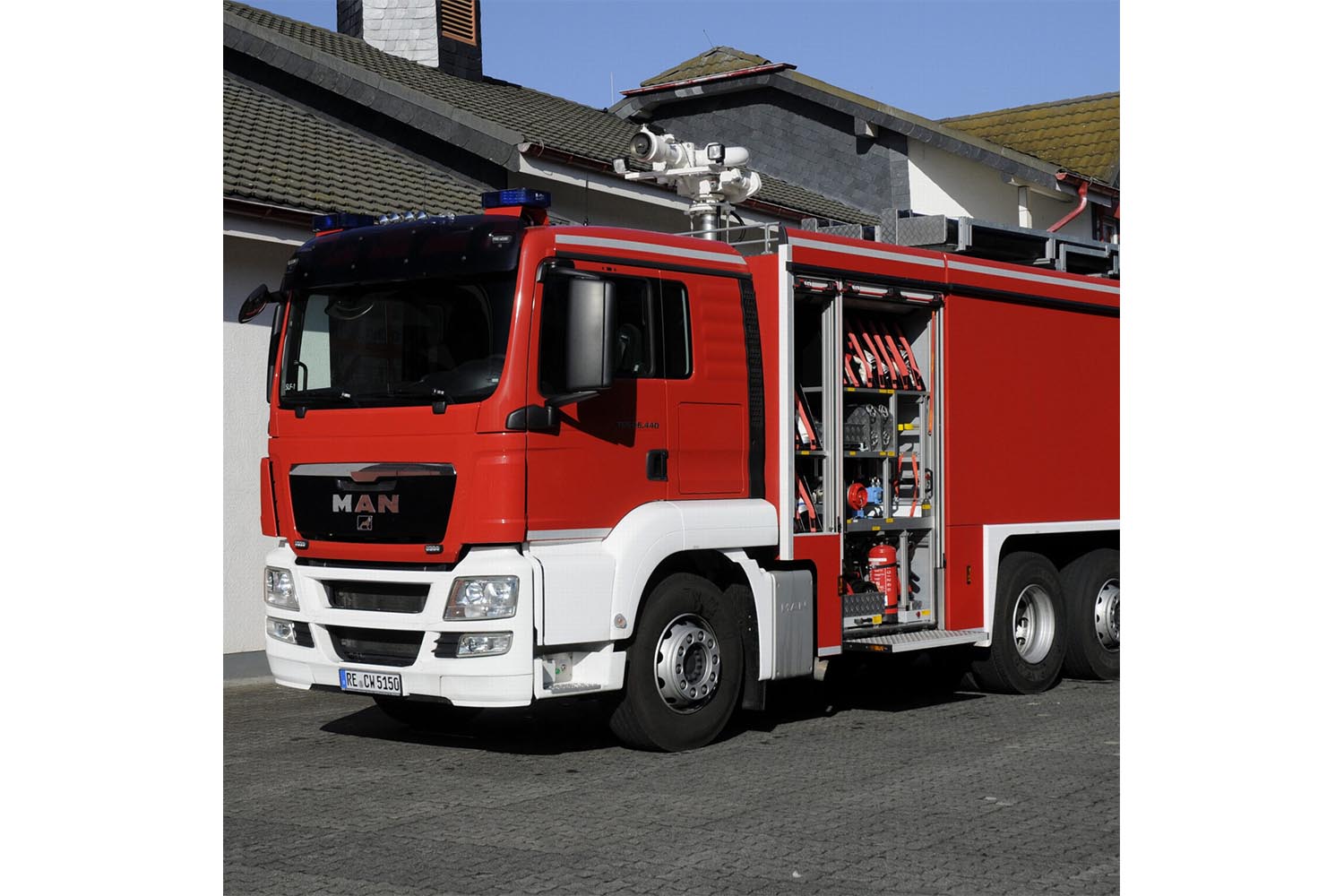

Foam Firefighting Vehicle
Industrielöschfahrzeuge
Module bodywork "AluPrime" with shutter system
Structure
- Module bodywork "AluPrime" with shutter system and
individual door control, Bodywork separated into 3 parts: equipment

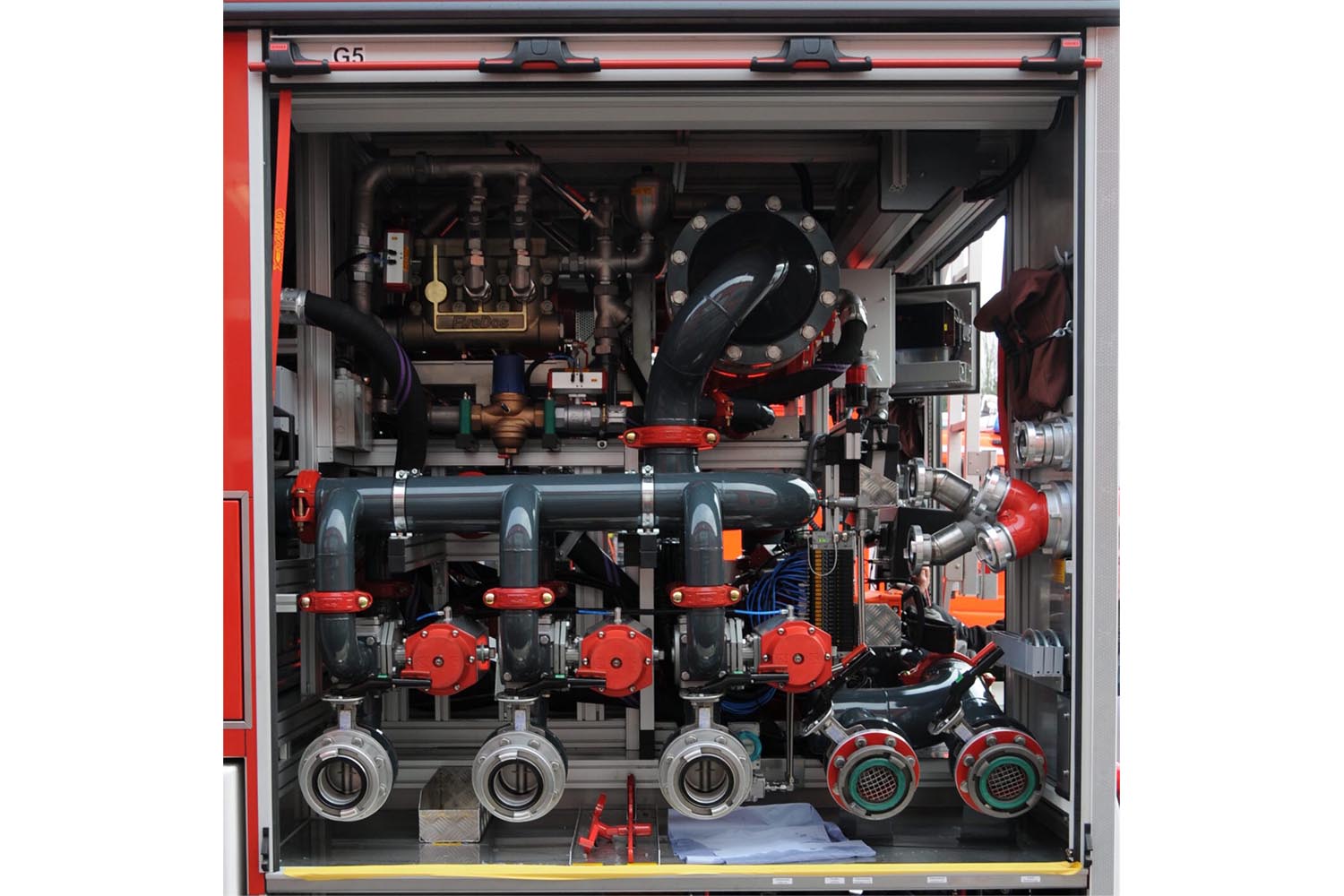

compartment, foam concentrate tank, pump module
The data at a glance
MAN TGS 26.440 6x2-4 BLLChassis
324 kW (440 HP) EURO 5Engine Power
9.650 mmLength
2.500 mmWidth
3.520 mmHeight
3900 + 1350Wheelbase
28.000 kgpermissible total weight
FPN 10-10000Pump
4 x50 W LED / 24 V headlight with cable remote controlLight mast
9.000 lFoam
| Product name | Foam Firefighting Vehicle – 81610 |
|---|---|
| Chassis | MAN TGS 26.440 6x2-4 BLL |
| Machine status | New |
| Engine power | 324 kW (440 HP) EURO 5 |
| Length [in mm] | 9650 |
| Width [in mm] | 2500 |
| Height [in mm] | 3520 |
| Wheelbase [in mm] | 3900 + 1350 |
| Gross vehicle weight [in kg] | 28000 |
| Pump | FPN 10-10000 |

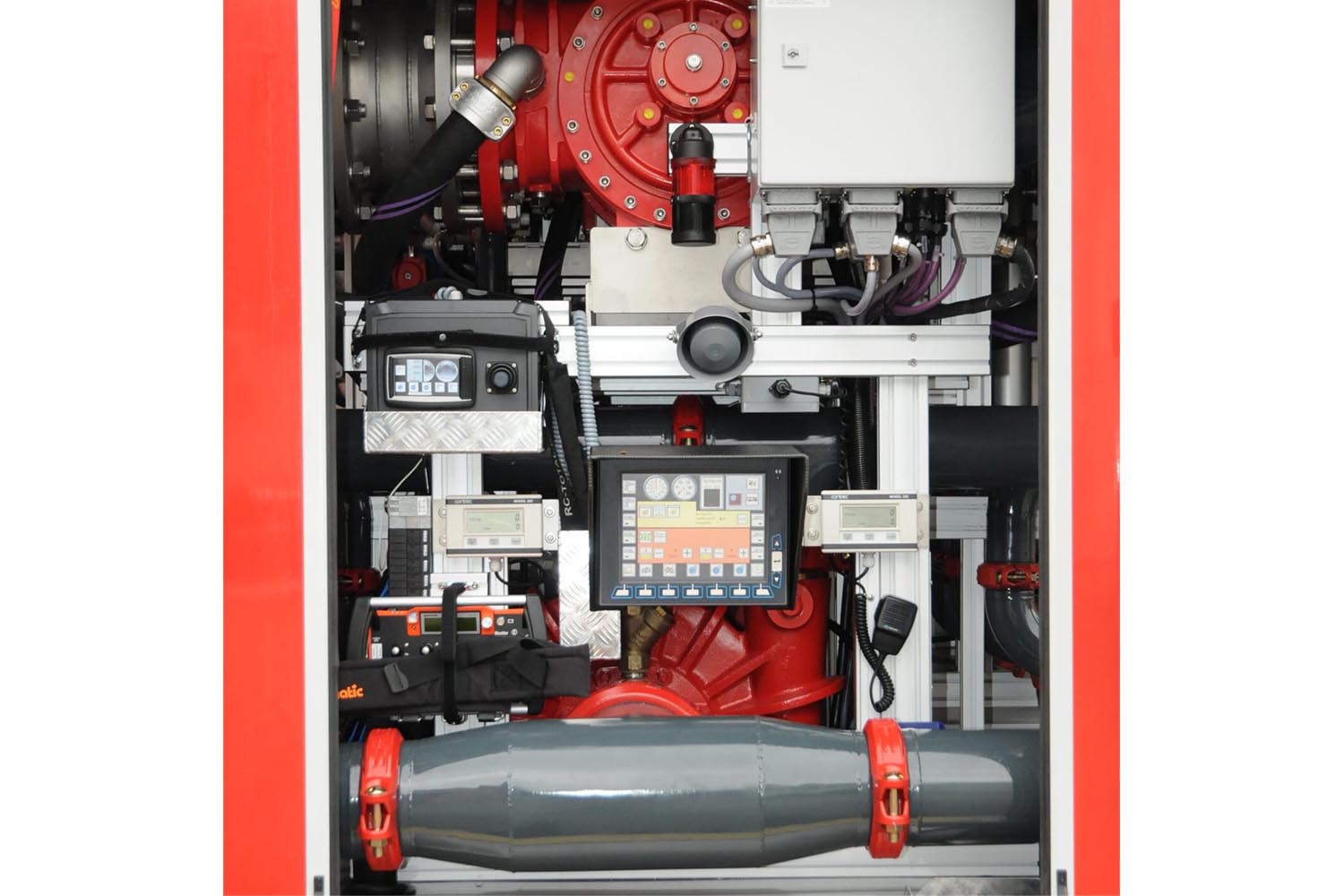

| Operation extinguishing system | - 7″ display in the driver's cab for operating the firefighting functions - 12″ display for operating the extinguishing technology at the rear |
| Light mast | 4 x50 W LED / 24 V headlight with cable remote control |
| Pressure control | FireDos FD 10000 |
| Foam [in l] | 9000 |
Foam pump
– 1.000 l/min @3 bar for filling the foam tank
Foam pump
– 800 l/min @3 bar for emptying the foam tank

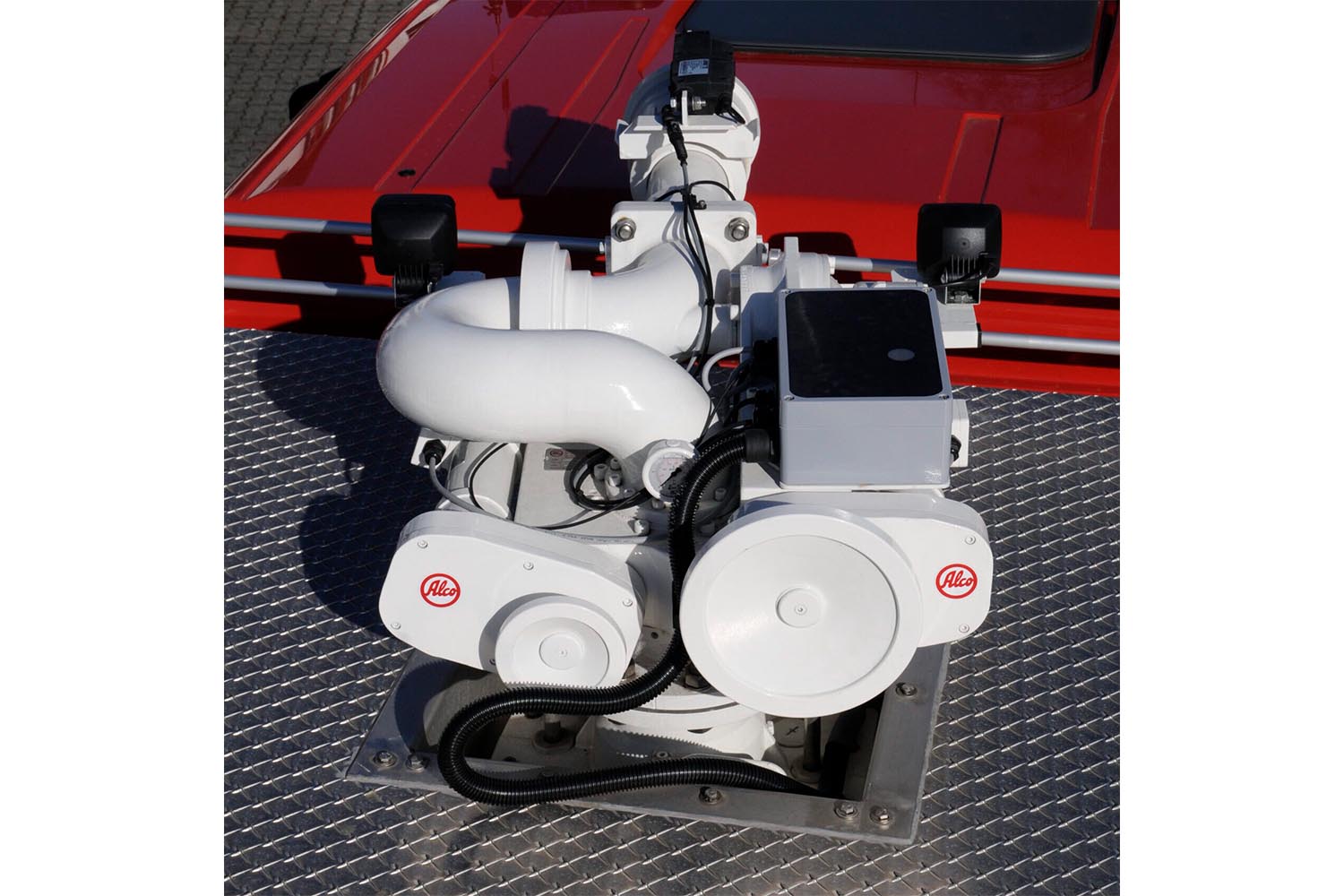

Roof monitor
ALCO PowerFighter APF 5 24V DC hollow/spray jet nozzle MZ 8000 on pneumatic pull-out, operation via radio and cable remote control

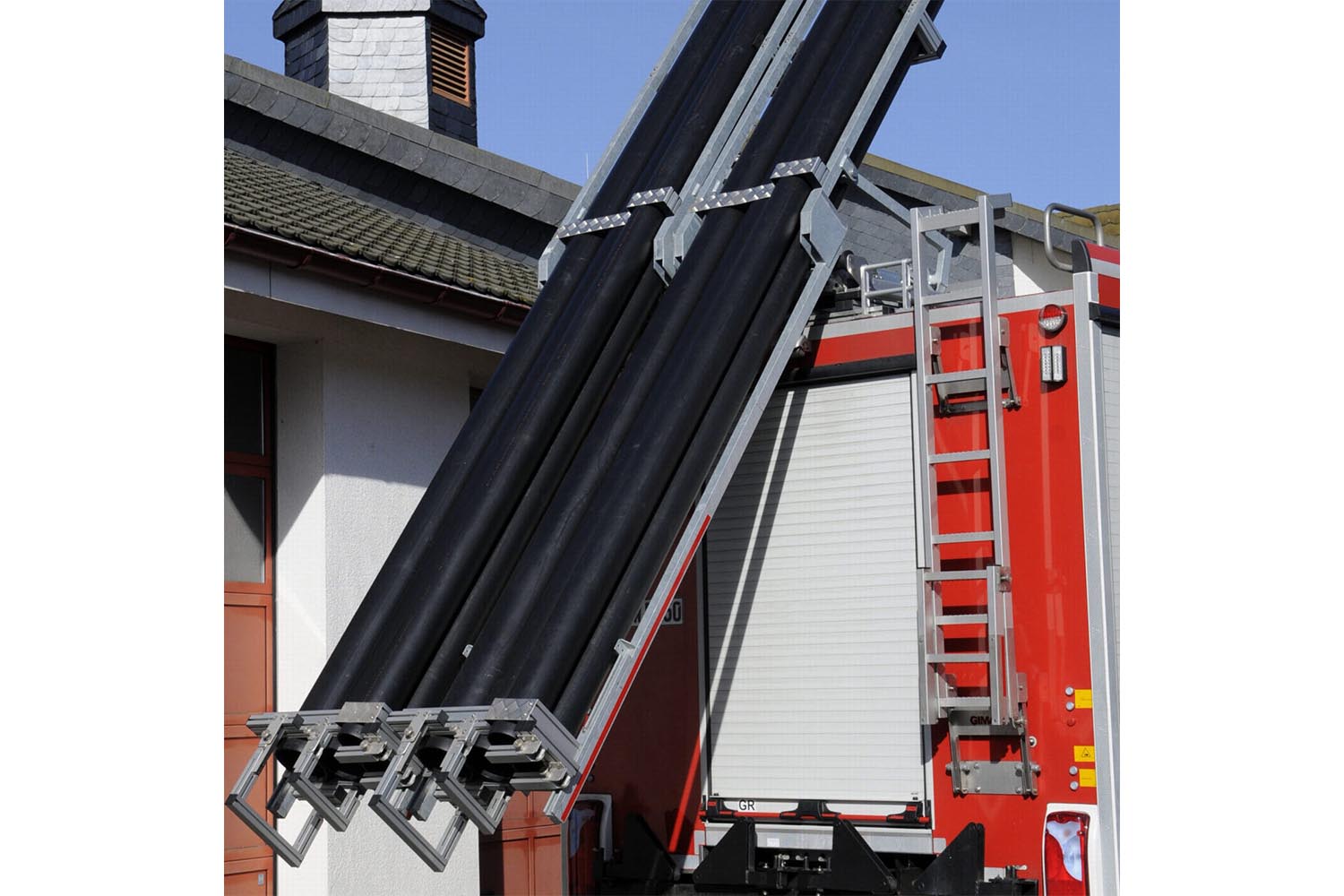

- Hydraulic lifting installation, for two mobile one-man reels,
mounted at the vehicle‘s rear - Automatically lowering device, can be electrically lowered
and extended for suction hoses - Remote maintenance module
