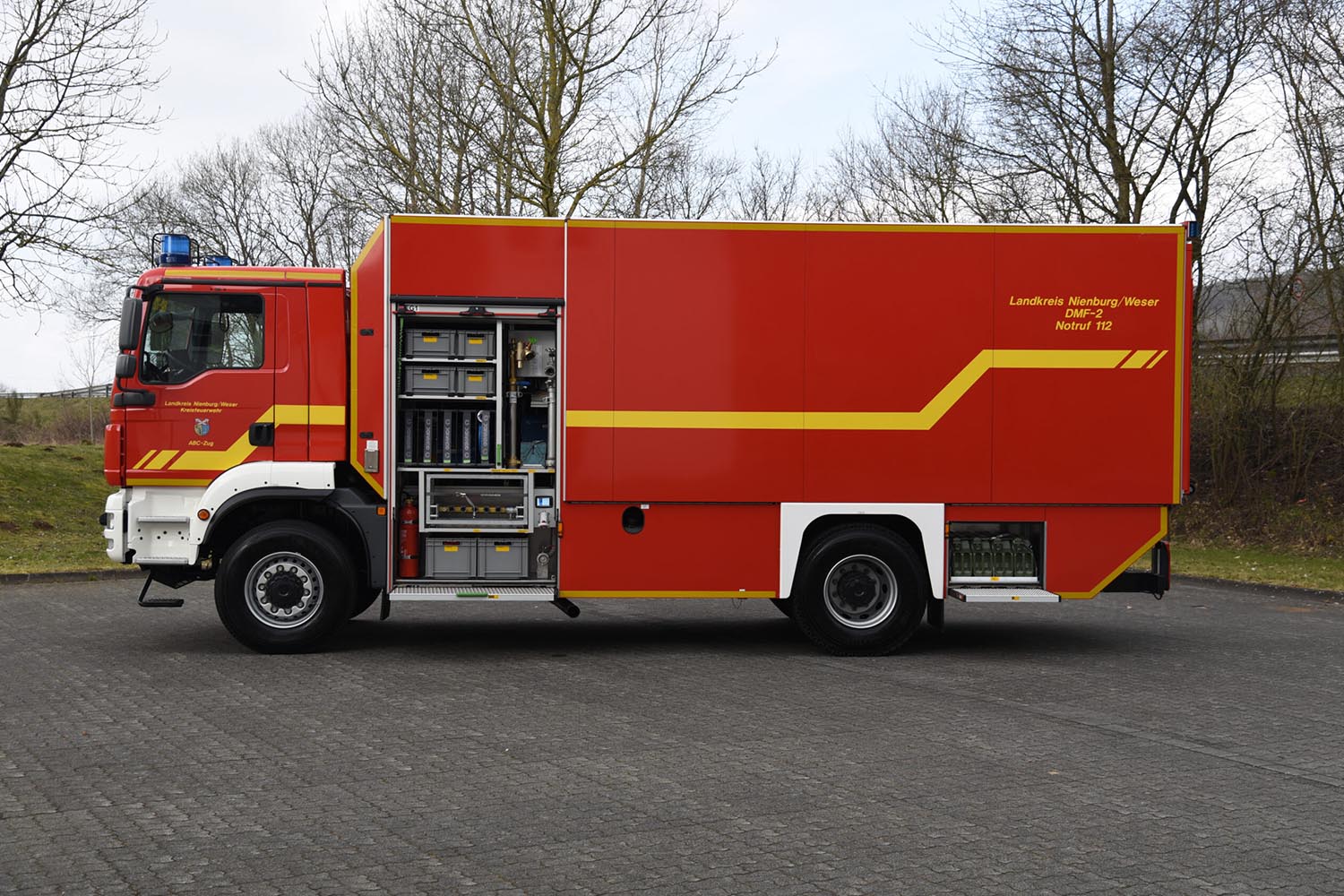

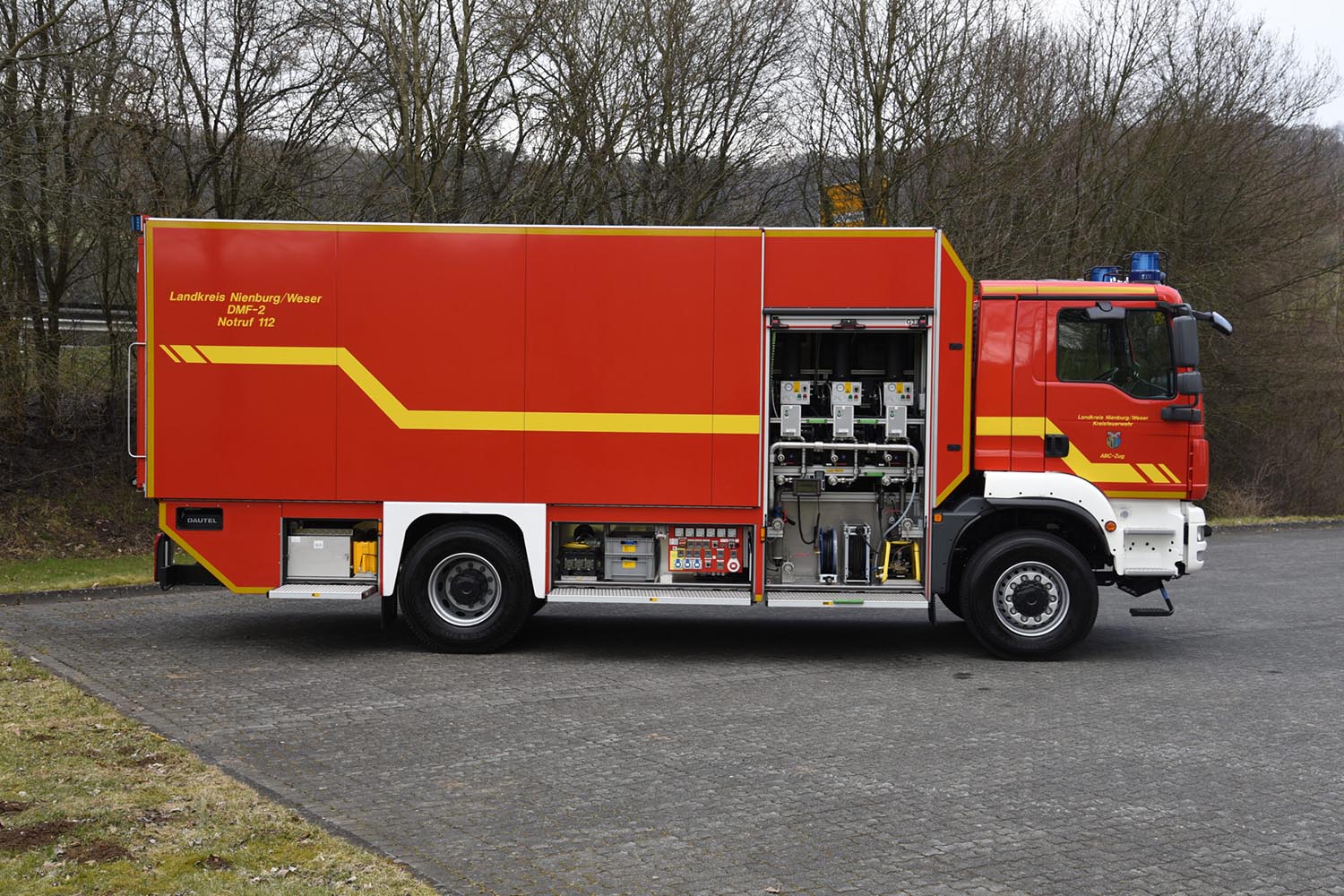

HazMat Truck Decontamination

HazMat Truck Decontamination

Gerätewagen Dekontamination und Messfahrzeuge

"AluPrime" profile system with hydraulic platform

Body deep-drawn between the axles, foldable steps

technical specifications

Structure

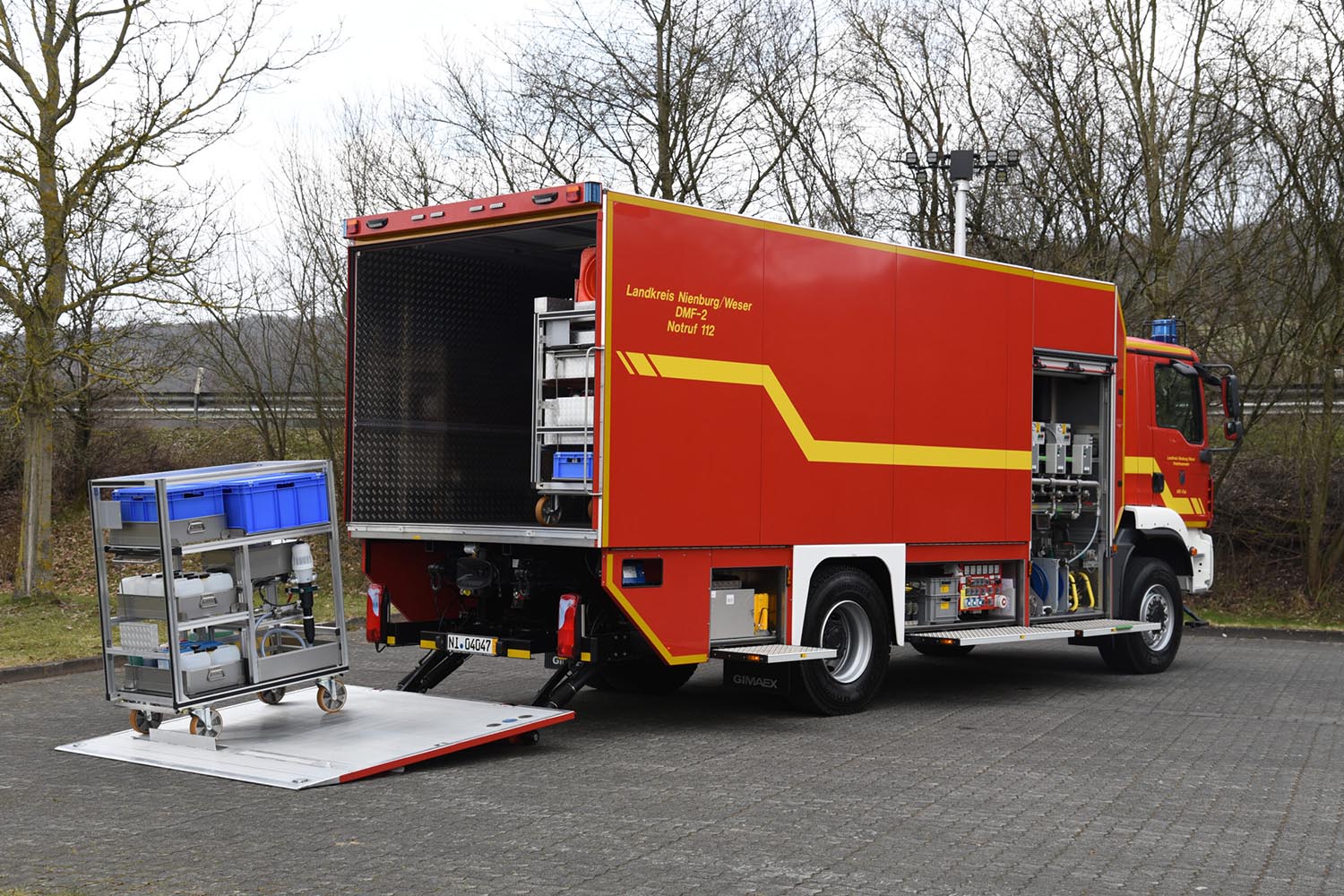

  • Rear lifting platform (aluminium), loading capacity of 1.500 kg, platform height of 1,700 mm

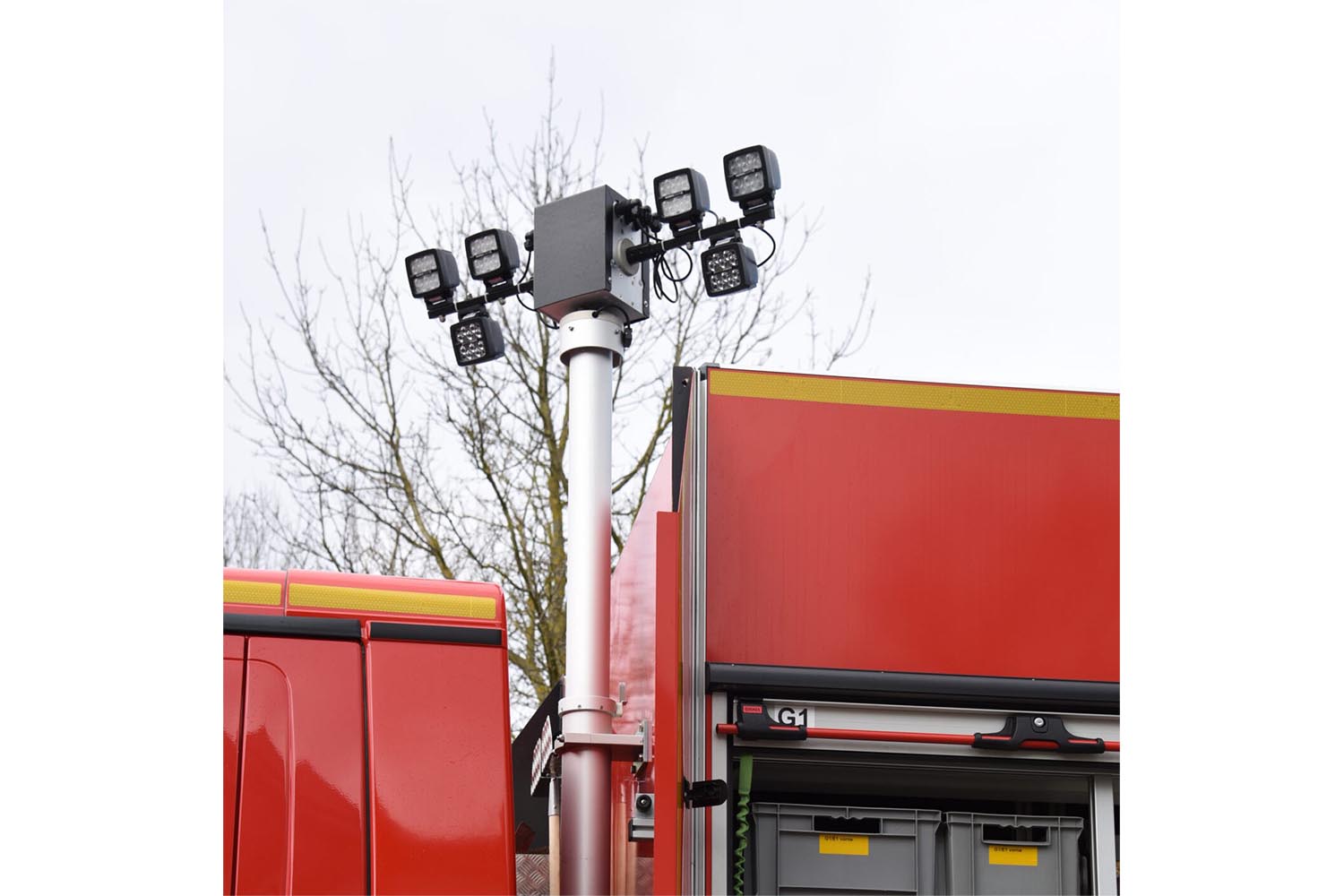

  • Pneumatic light mast with 6 x 50 W (24 V) LED headlight units

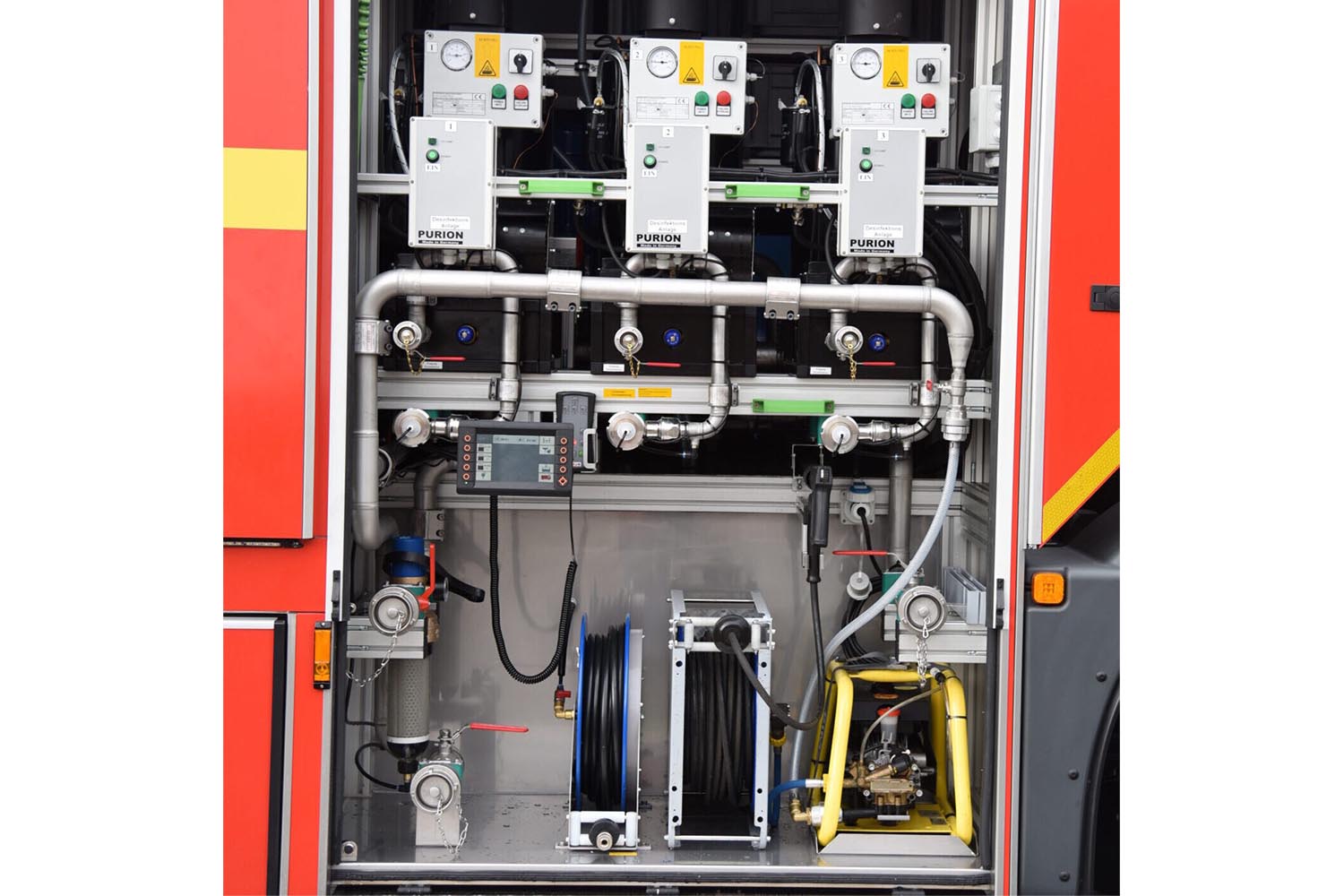

  • Water desinfectioning device with UV light, incl. lamp control and UV intencity measuring
  • 3 x flow heater for fixed installation

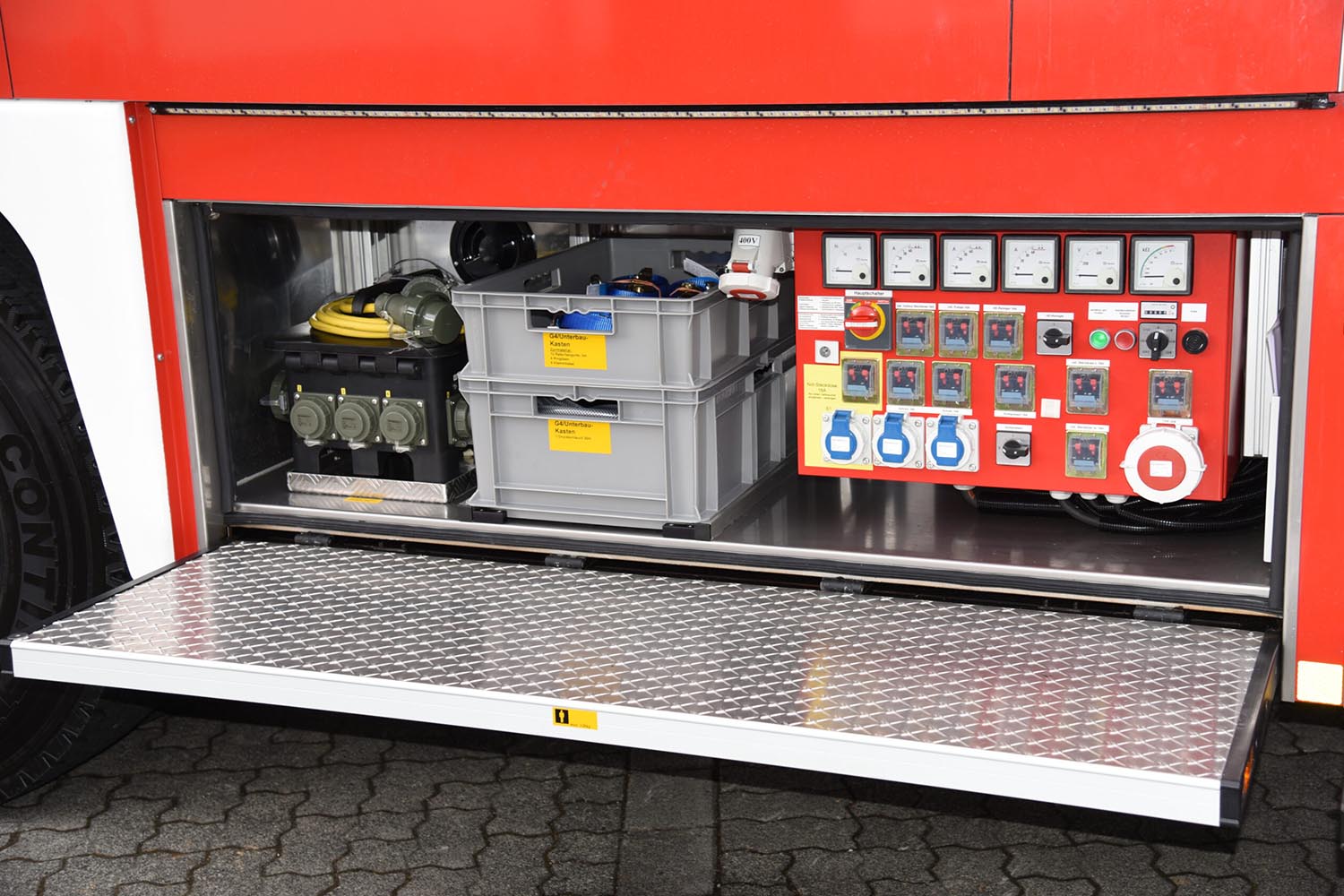

  • Built-in generator 34 kVA
  • Fast attack installation "Air"
3742 Gerätewagen Dekon 001
3742 Gerätewagen Dekon 001
3742 Gerätewagen Dekon 002
3742 Gerätewagen Dekon 002
3742 Gerätewagen Dekon 003
3742 Gerätewagen Dekon 003
3742 Gerätewagen Dekon 004
3742 Gerätewagen Dekon 004
3742 Gerätewagen Dekon 005
3742 Gerätewagen Dekon 005
3742 Gerätewagen Dekon 006
3742 Gerätewagen Dekon 006
3742 Gerätewagen Dekon 007
3742 Gerätewagen Dekon 007
3742 Gerätewagen Dekon 008
3742 Gerätewagen Dekon 008
3742 Gerätewagen Dekon 009
3742 Gerätewagen Dekon 009

The data at a glance

MAN TGM 18.340 4×4 BBChassis
250 kW (340 HP ) Euro 5Engine Power
18.000 kgpermissible total weight

Product name HazMat Truck Decontamination – 3742
Chassis MAN TGM 18.340 4×4 BB
Machine status New
Engine power 250 kW (340 HP ) Euro 5
Length [in mm] 9320
Width [in mm] 2550
Height [in mm] 3500
Wheelbase [in mm] 4500
Gross vehicle weight [in kg] 18000

Crew
1+2

  • Air-supported collection tarpaulin with double circumferential inflatable air bead
  • Drinking water hoses according to DVGW

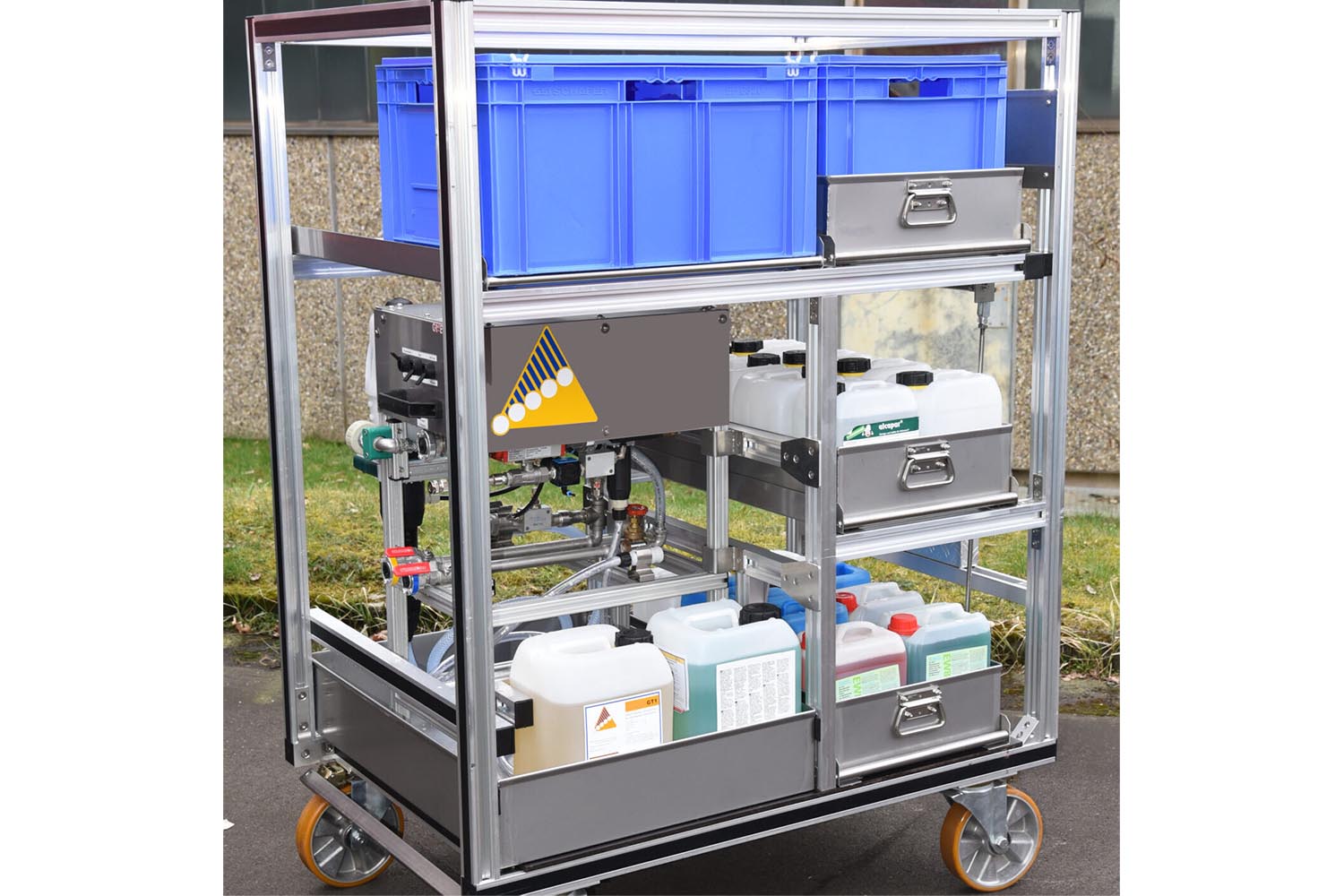

  • Roll container "decontamination" with Fobacon 100 unit
