Equipment Vehicle
Einsatzleitwagen 2/3
The structure consists of a seamless sandwich construction, divided into a storage compartment for roll-out containers, a
radio room and an equipment room
Structure
- The structure consists of a seamless sandwich construction,
divided into a storage compartment for roll-out containers, a
radio room and an equipment room - Slide-out unit with a special linear guide and drive system
- Door system with central locking
- Extendable access steps in a folding parallelogram design, including automatically extending handrails
- 5x base units for equipment and cargo
- LED peripheral lighting
FEATURES
- Hydraulic support system for front and rear axles
- Electric cassette awning with support
Width: approx. 6,500 mm, projection: approx. 3,000 mm - Hydraulic loading platform
- Rooftop fan
- 2x rooftop air conditioning units
- Auxiliary heating, 5 kW
- Storage compartment air conditioning, 2,000 W cooling capacity
- ELW 19“ rack for housing various components
- Media technology
- Automatically aligning satellite antenna
- Weather station with display and web access
- Telecommunications connection box
- Antenna mast
| Product name | Equipment Vehicle – 3900 |
|---|---|
| Chassis | MAN TGM 26.320 6x2-4 LL |
| Machine status | New |
| Engine power | 235 kW (320 HP) EURO 6 |
| Length [in mm] | 10950 |
| Width [in mm] | 2550 |
| Height [in mm] | 3800 |
| Wheelbase [in mm] | 5425 |
| Gross vehicle weight [in kg] | 26000 |

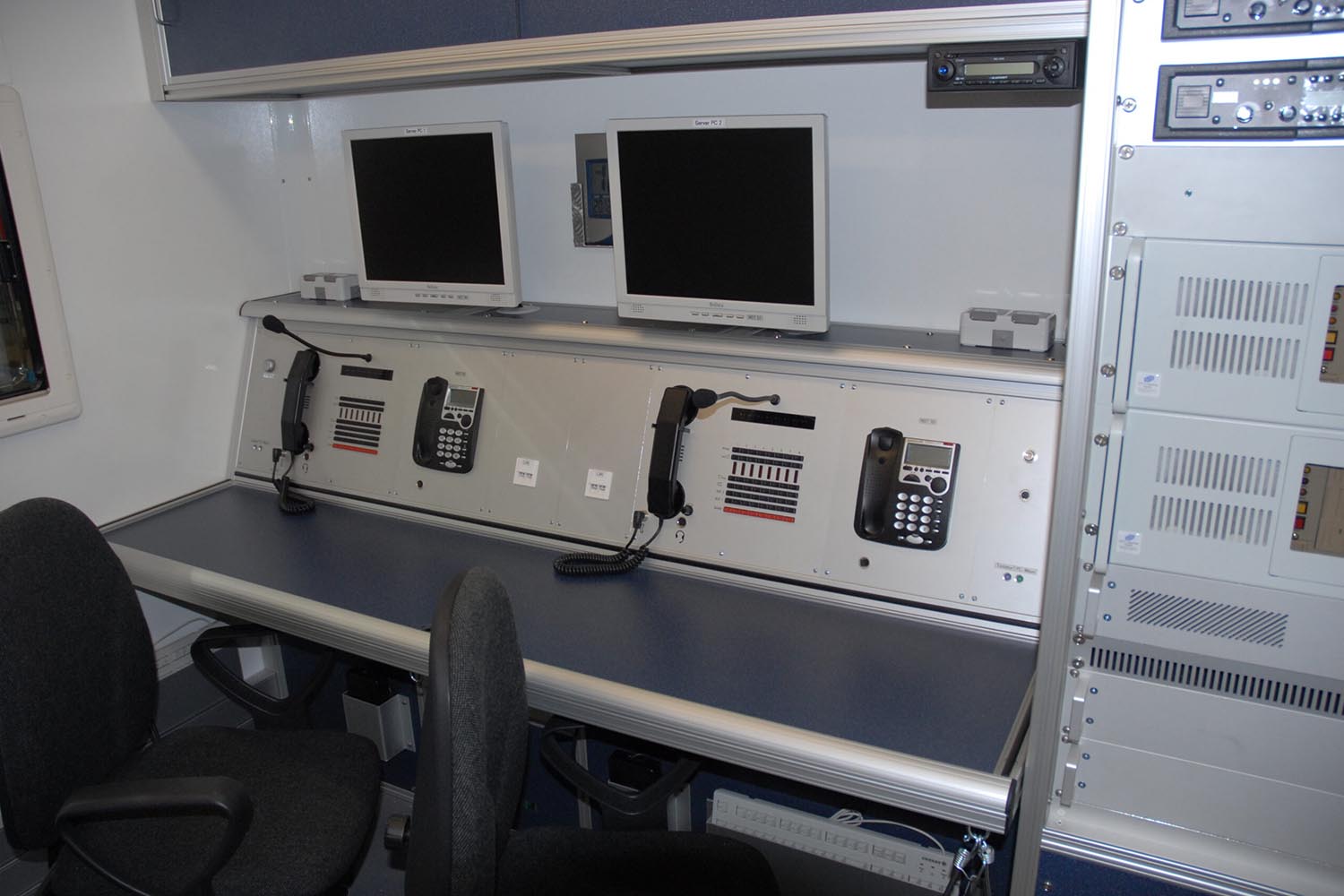

CONTROL ROOM
- 3-seater radio table in the slide-out
- 2-seater radio table in the main body
- Base and wall units
- Lardis communication system
- Telephone system
EQUIPMENT ROOMS
- Generator
- 4 cable reel
- Hydraulic power unit (extension)
- Hydraulic power unit (stabiliser)
- External monitor
- Tent kitZeltgarnitur
LOADING
- Loading in accordance with local requirements
- Trolley "Cable"
- Trolley "Operations"
- Trolley "Drone"
- Trolley "Accommodation"
- Trolley "Safety / Lighting"
- Trolley "ICT / IT"
