Mobile Command Unit 2 (MCU)

Einsatzleitwagen 2/3

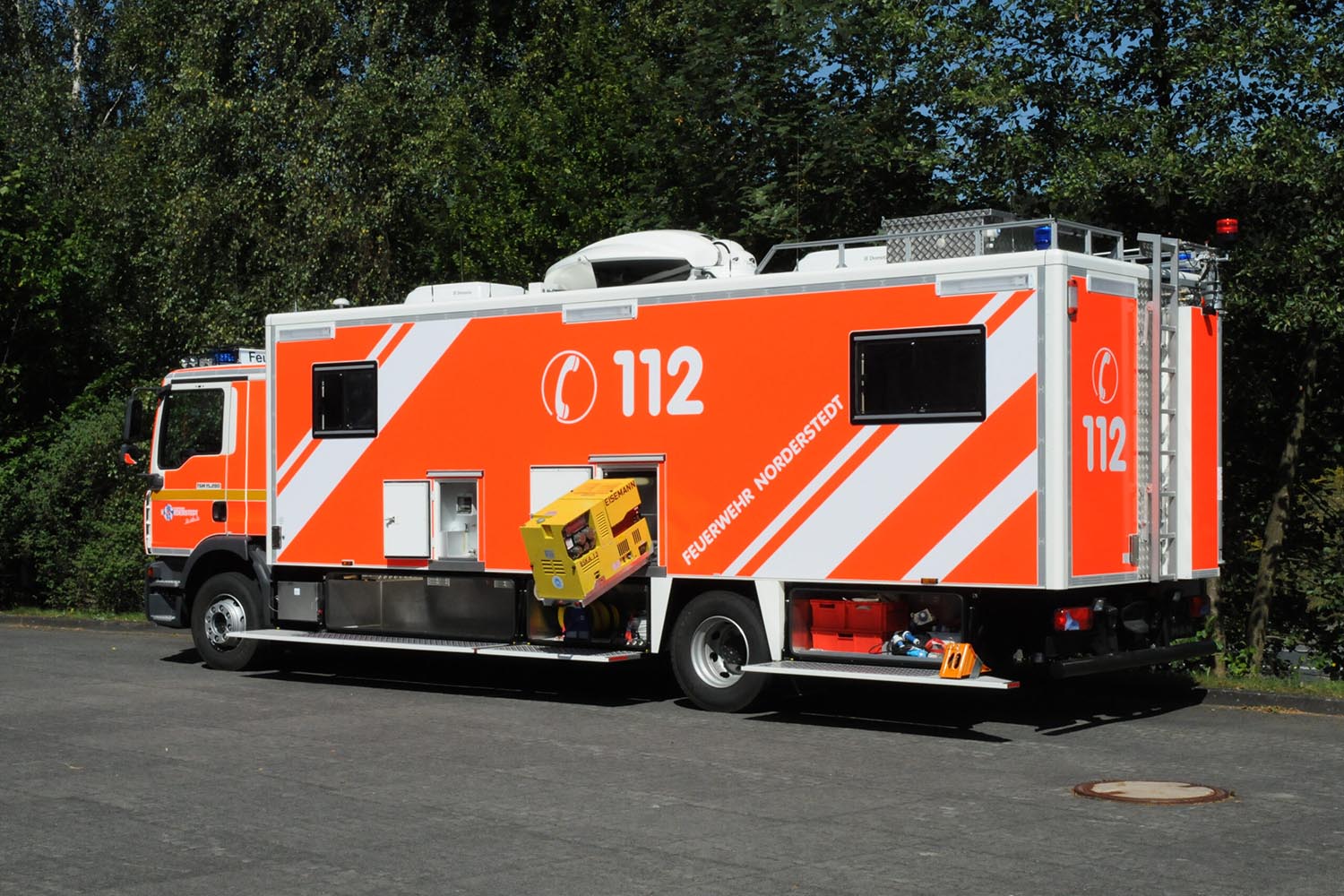

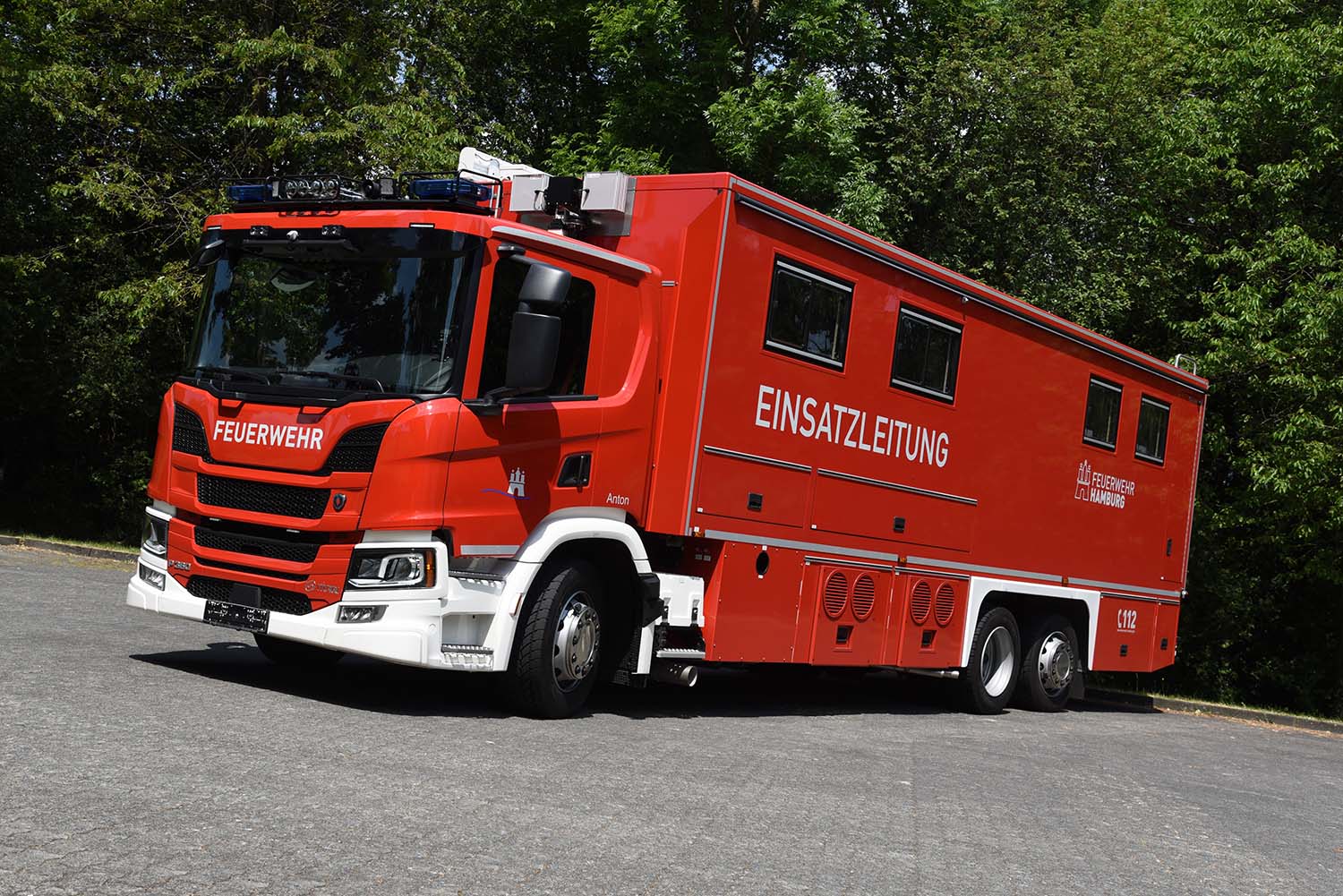

The vehicle now features the new corporate design of the Hamburg Fire Department. To provide a more comprehensive impression, the current photo has been supplemented with earlier images showing the vehicle in its original livery.

technical specifications

Structure

The body is divided into a command room (front) and a communications room (rear).
The two compartments are connected by a sliding door.
External access is controlled via an access control system.
Underfloor storage compartments for equipment and operational gear.

EQUIPMENT:

1x cassette awning: width 3,050 mm, projection 2,500 mm
1x cassette awning: width 5,700 mm, projection 3,000 mm
Hydraulic stabilization system
Manual telescopic mast with floodlights (front)
Manual telescopic mast for antennas (rear)
Parking heaters, 5 kW + 3.5 kW
2x fire service generators (operation possible while driving)
Compressor-based air conditioning system for all compartments and technical equipment
360° camera monitoring system
Media system for all information sources and displays
32" exterior display for public information and presentations

Product name	Mobile Command Unit 2 (MCU) – 1635
Chassis	Scania P360 B6x2 LB
Machine status	New
Engine power	265 kW (360 HP) EURO VI
Length [in mm]	11500
Width [in mm]	2505
Height [in mm]	3650
Wheelbase [in mm]	5550 + 1350
Gross vehicle weight [in kg]	26000

COMMAND ROOM:

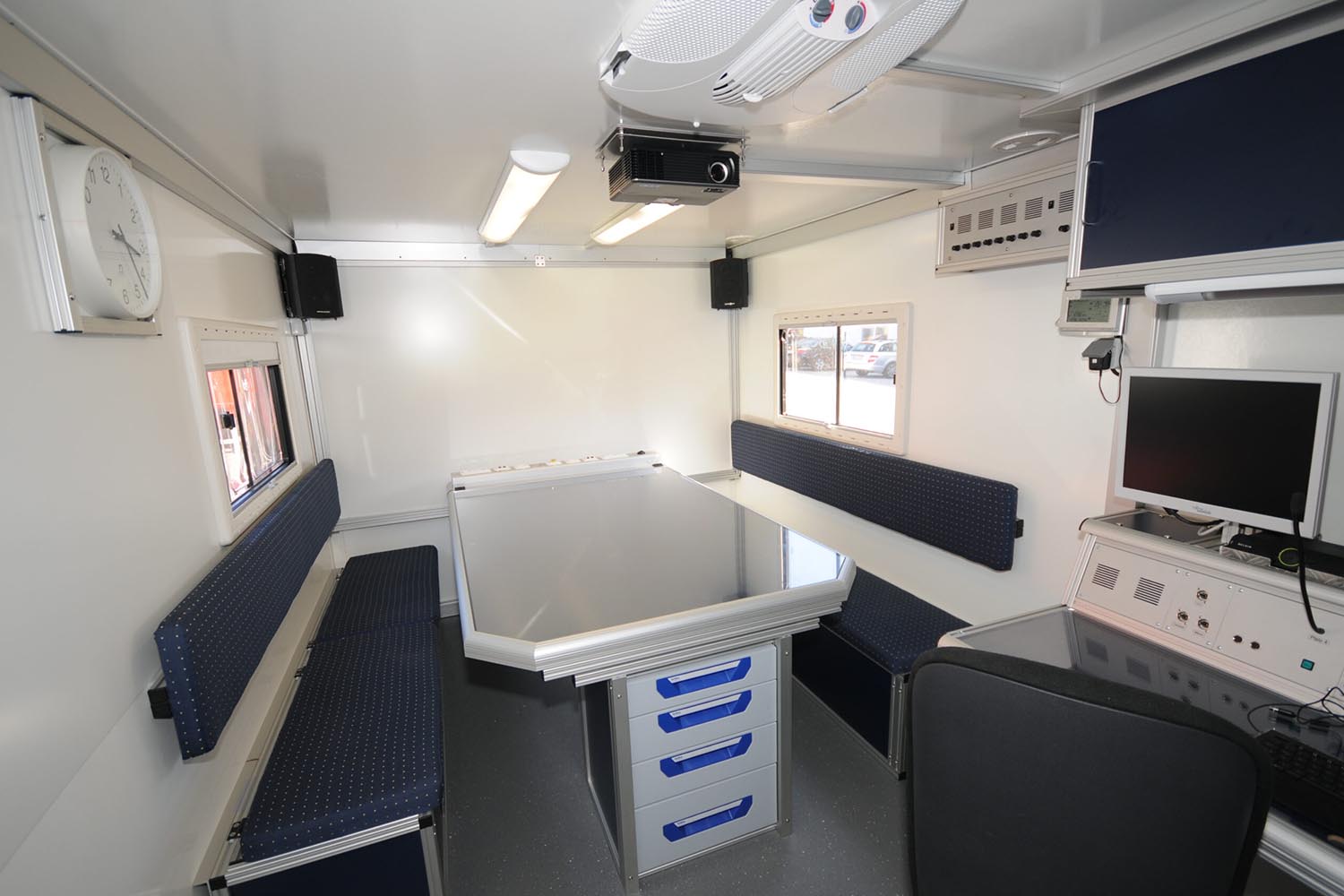

Conference table for 6 to 8 personnel, designed as a workstation with integrated table modules (recessed power and network connections)

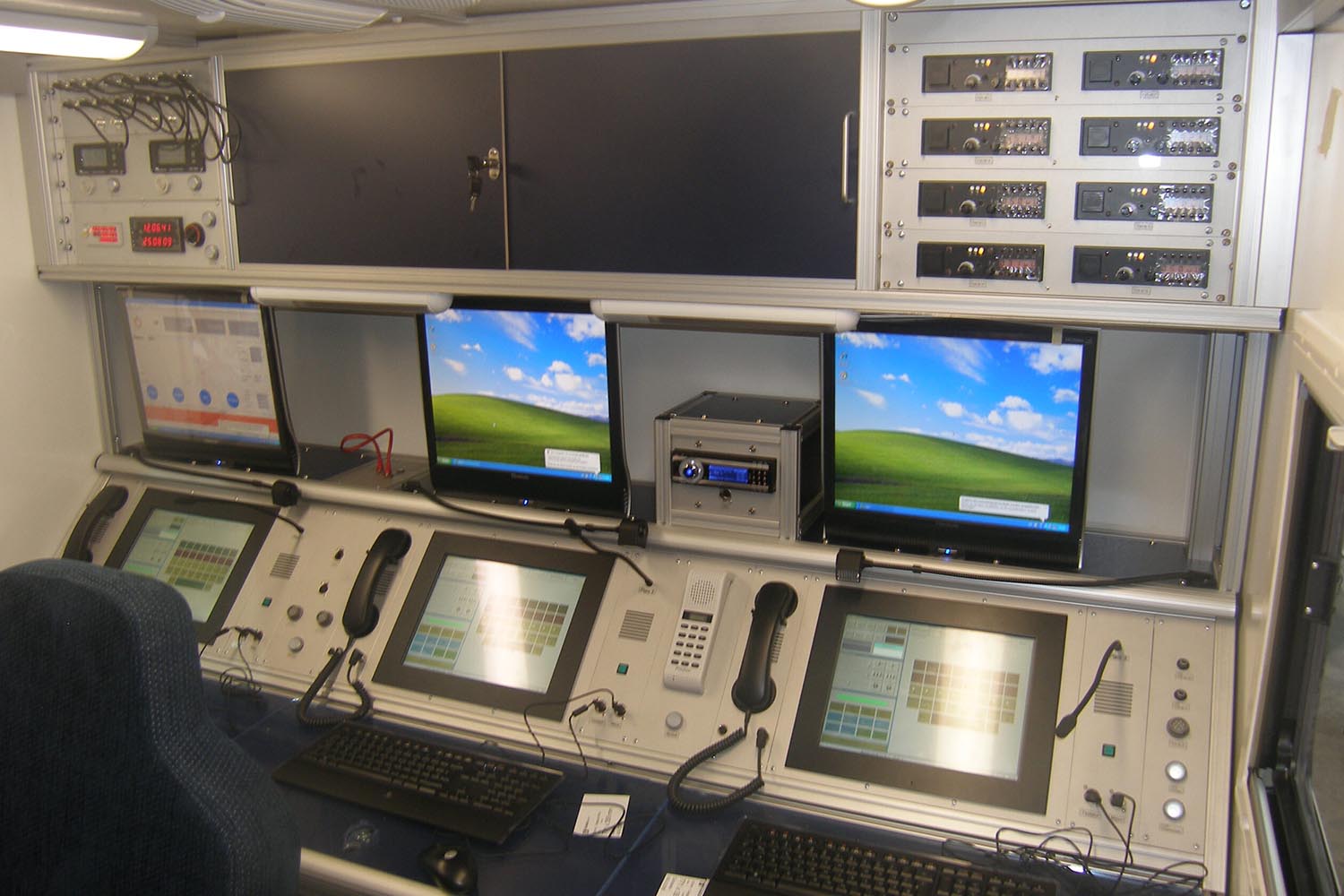

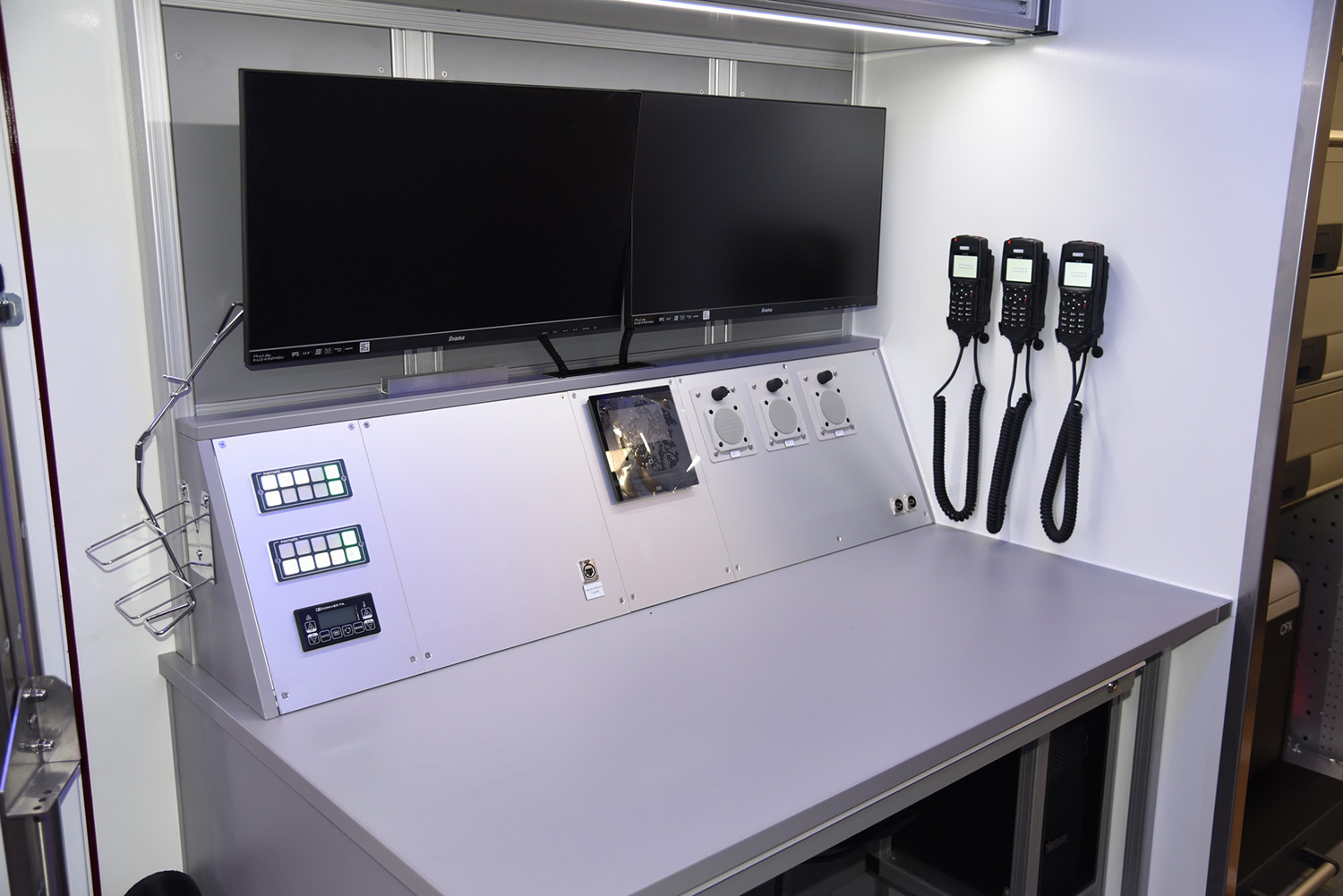

Operator workstation
2 × 24" monitors
Media wall
3 × 43" monitors
Cisco Webex Room Kit
7 laptops stored in drawers and fully integrated into the IT network
Printer
Document storage cabinet
