Mobile Command Unit 1
Einsatzleitwagen 1

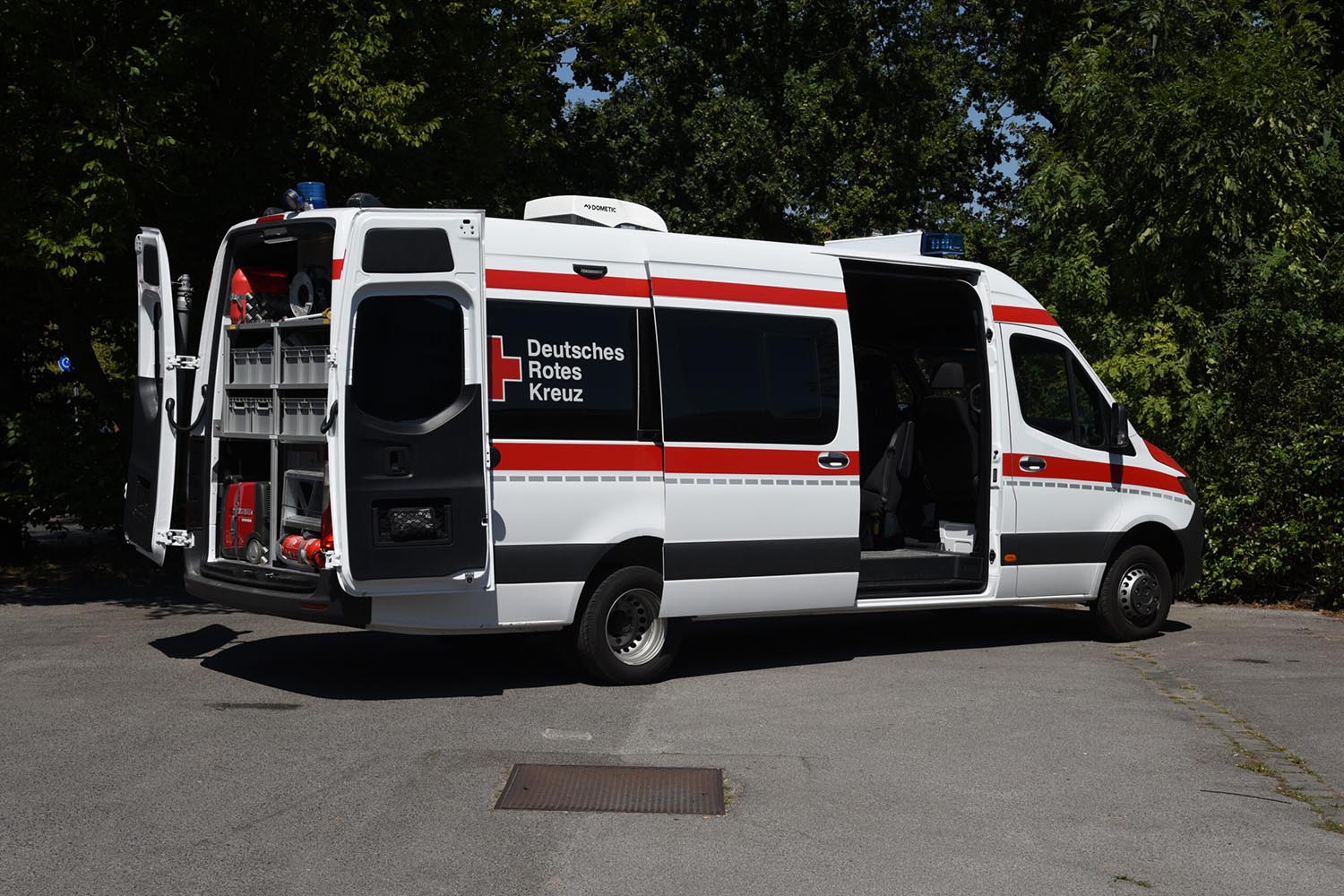

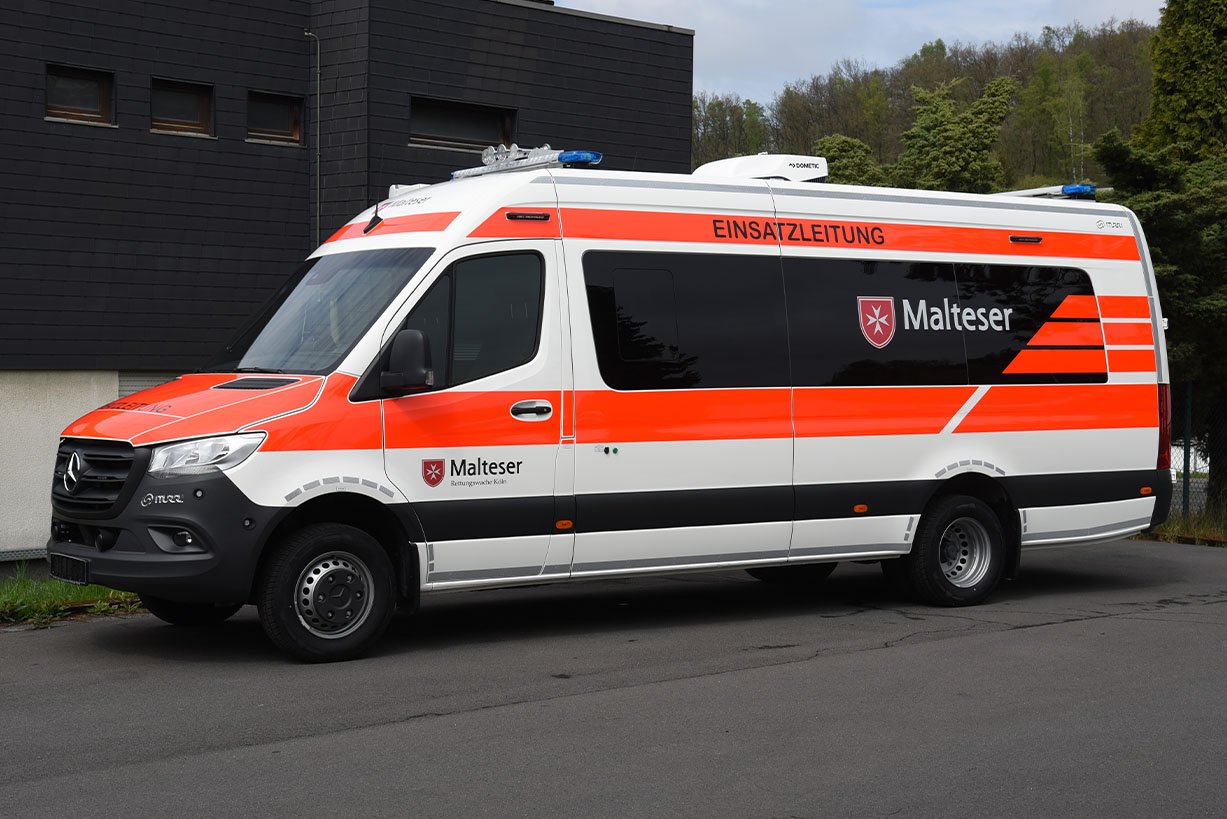

Command vehicle 1.5 built on a Sprinter chassis with long wheelbase. Radio and meeting room are separated from each other. In the rear is the radio room with 2 workstations, in the middle the meeting room with space for 4 people. Both rooms are connected by a partition wall with sliding door.
Structure

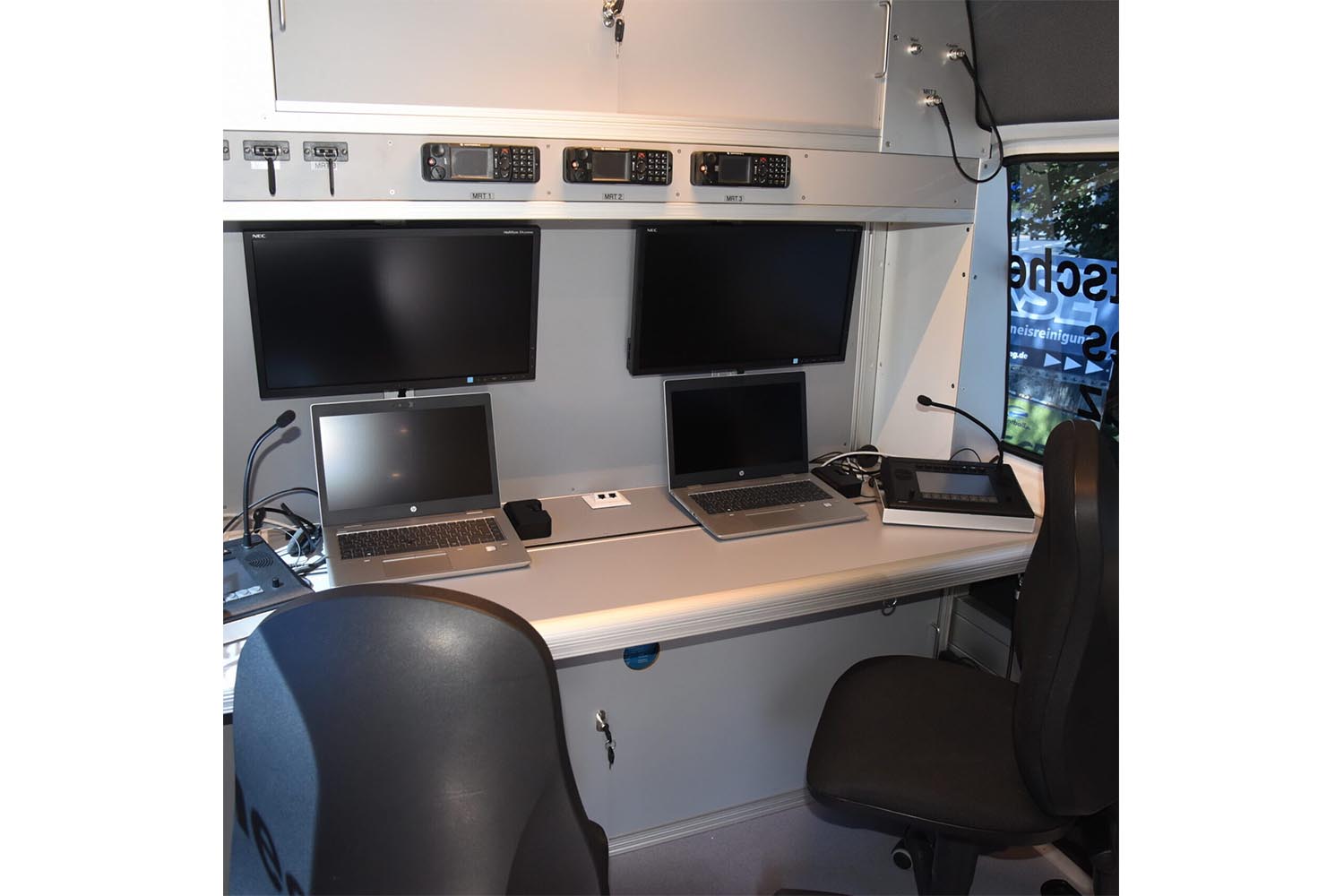

- MCU 1 with radio/workplaces at the rear

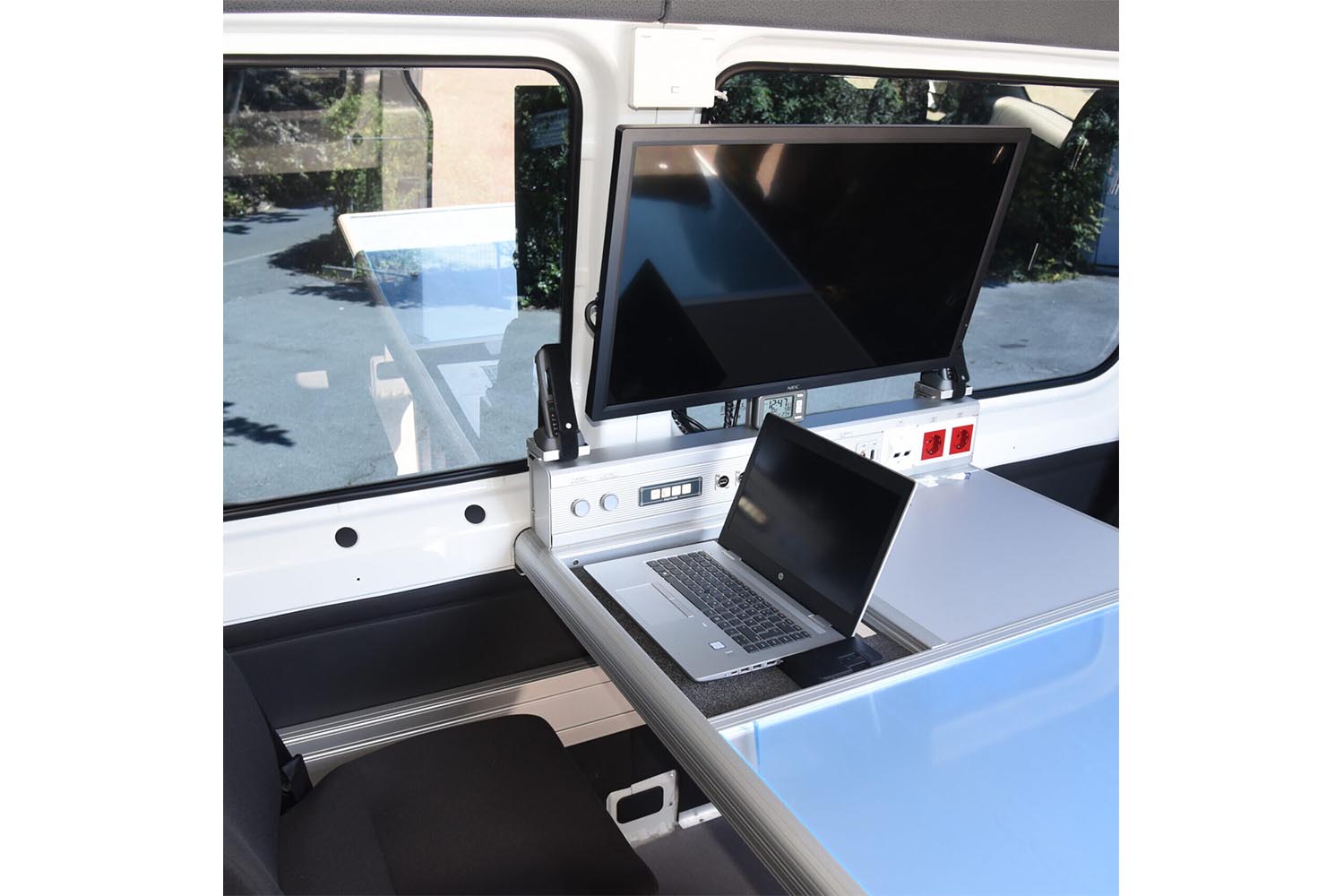

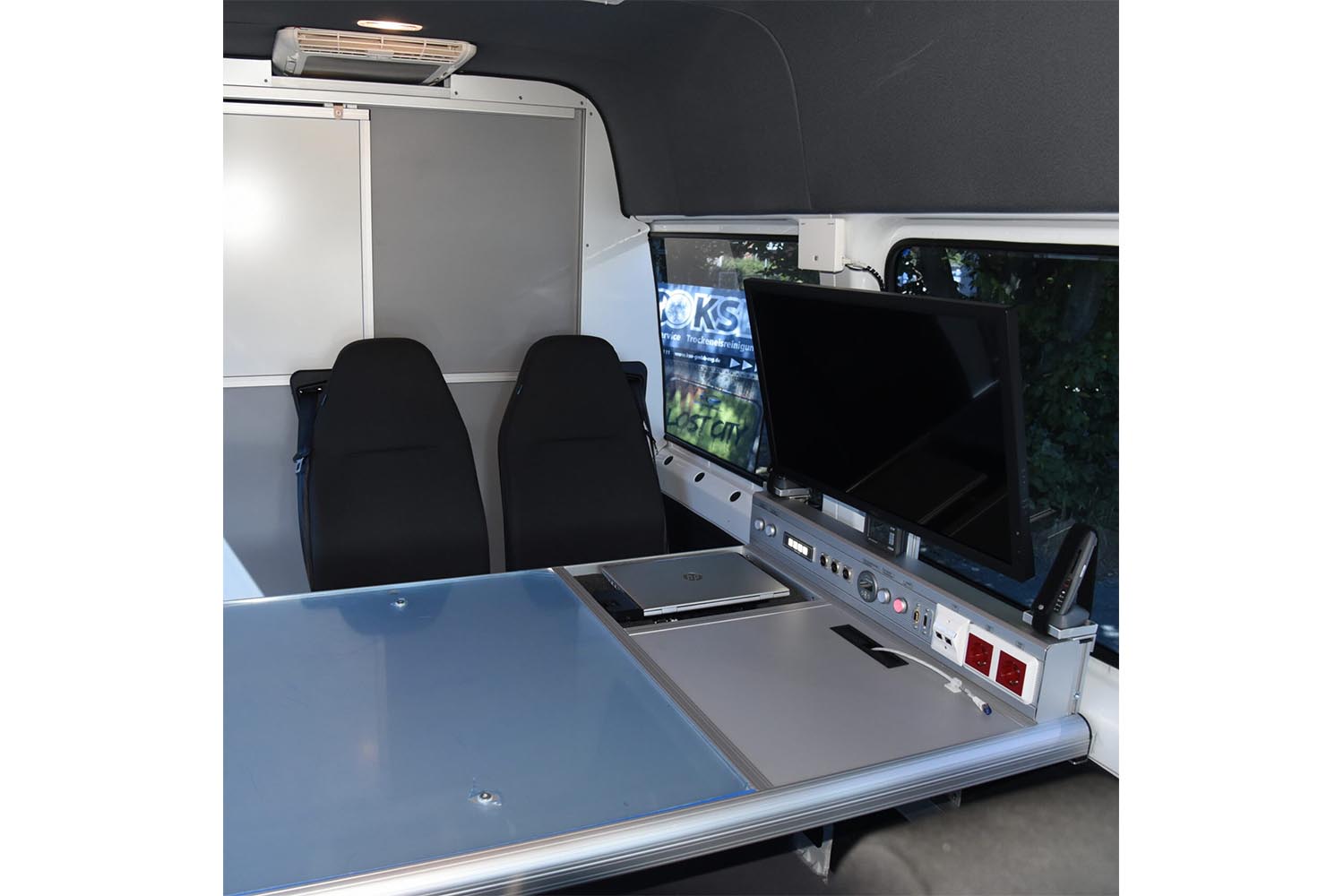

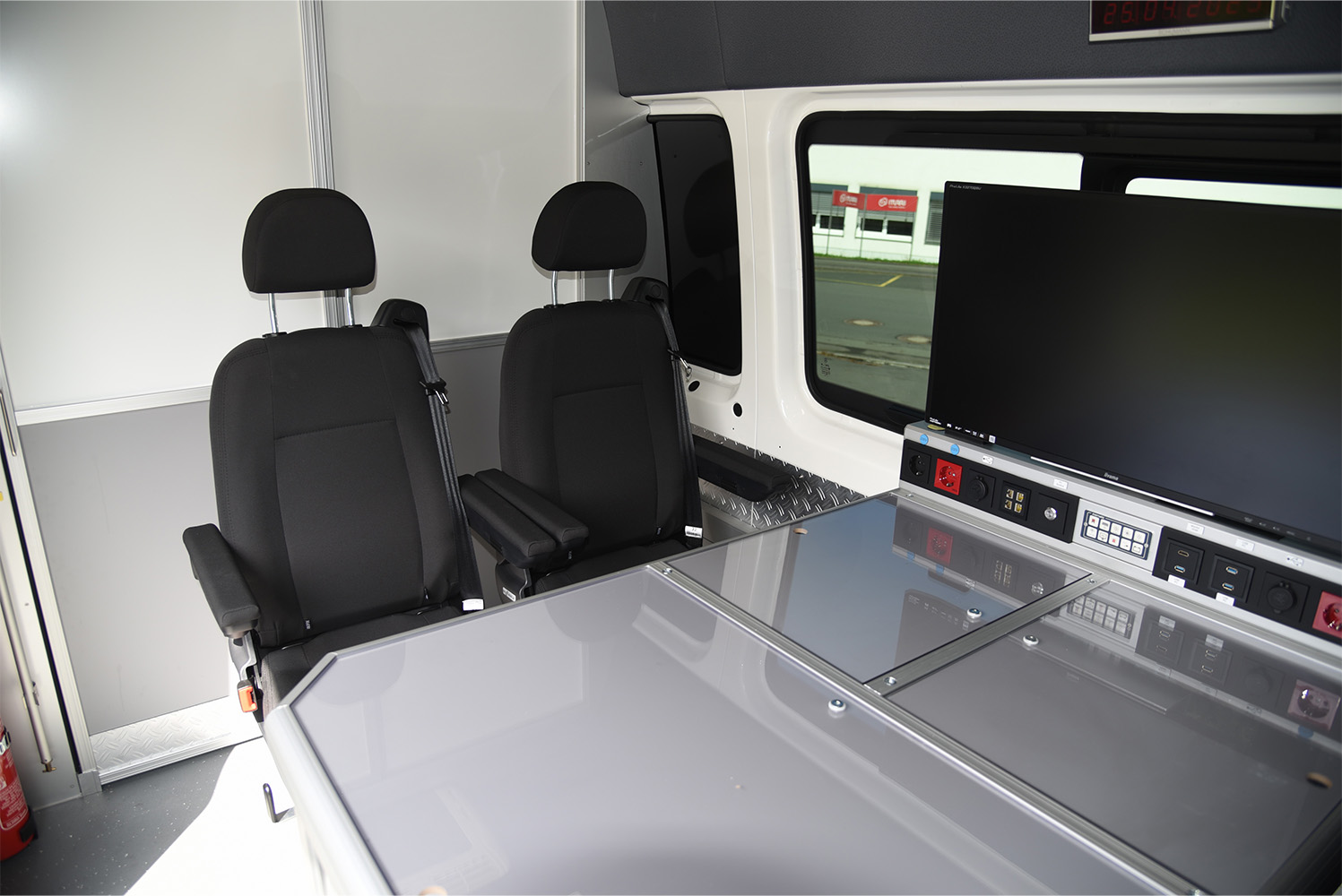

- MCU 1 conference / work table with notebook compartment
- Cabinet with sliding doors
- Separation wall between conference room and radio room
- Power inverter / charger / USV
- Power input 230 V DEFA
- Periphery lighting
- Roof top air conditioning

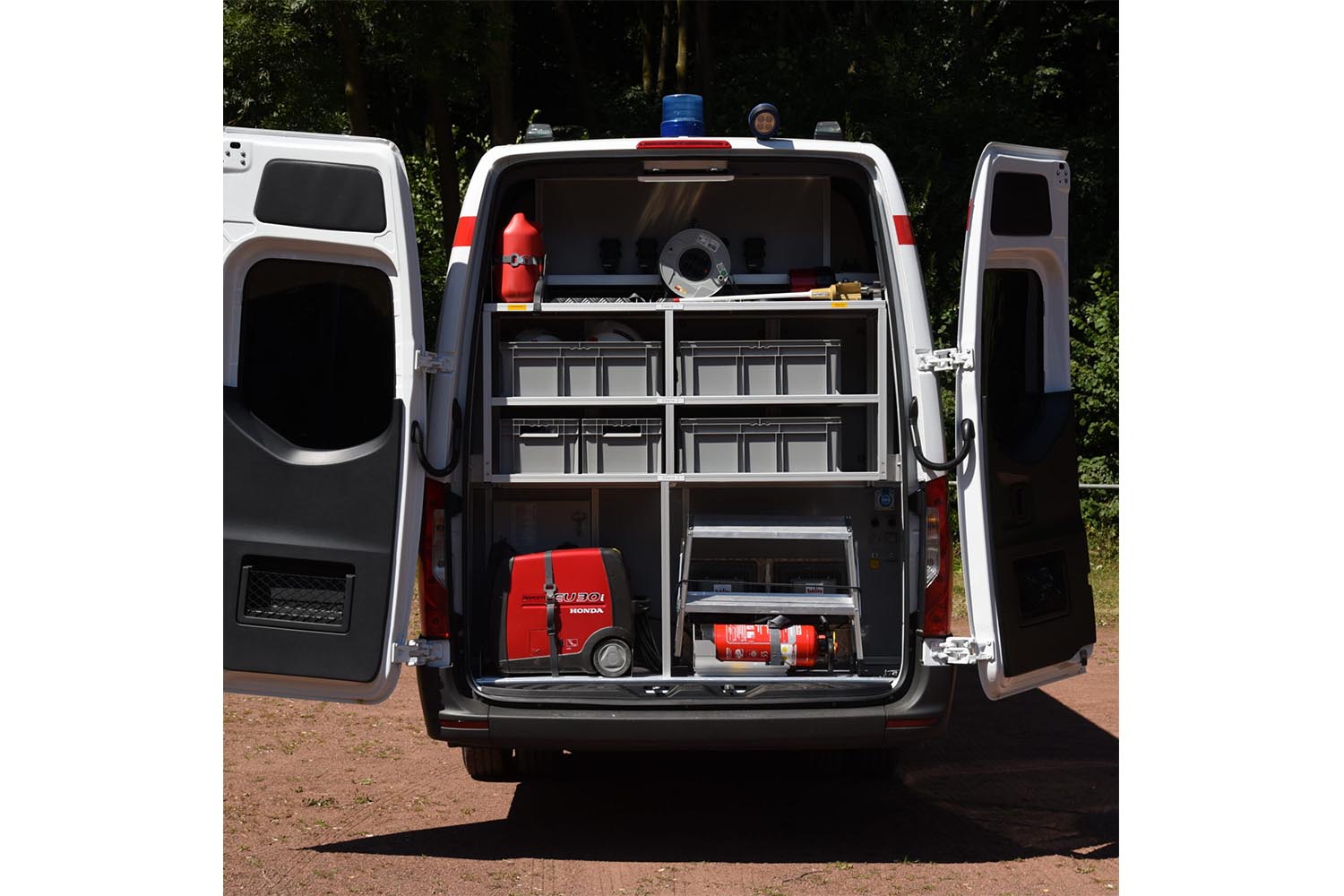

- Generator

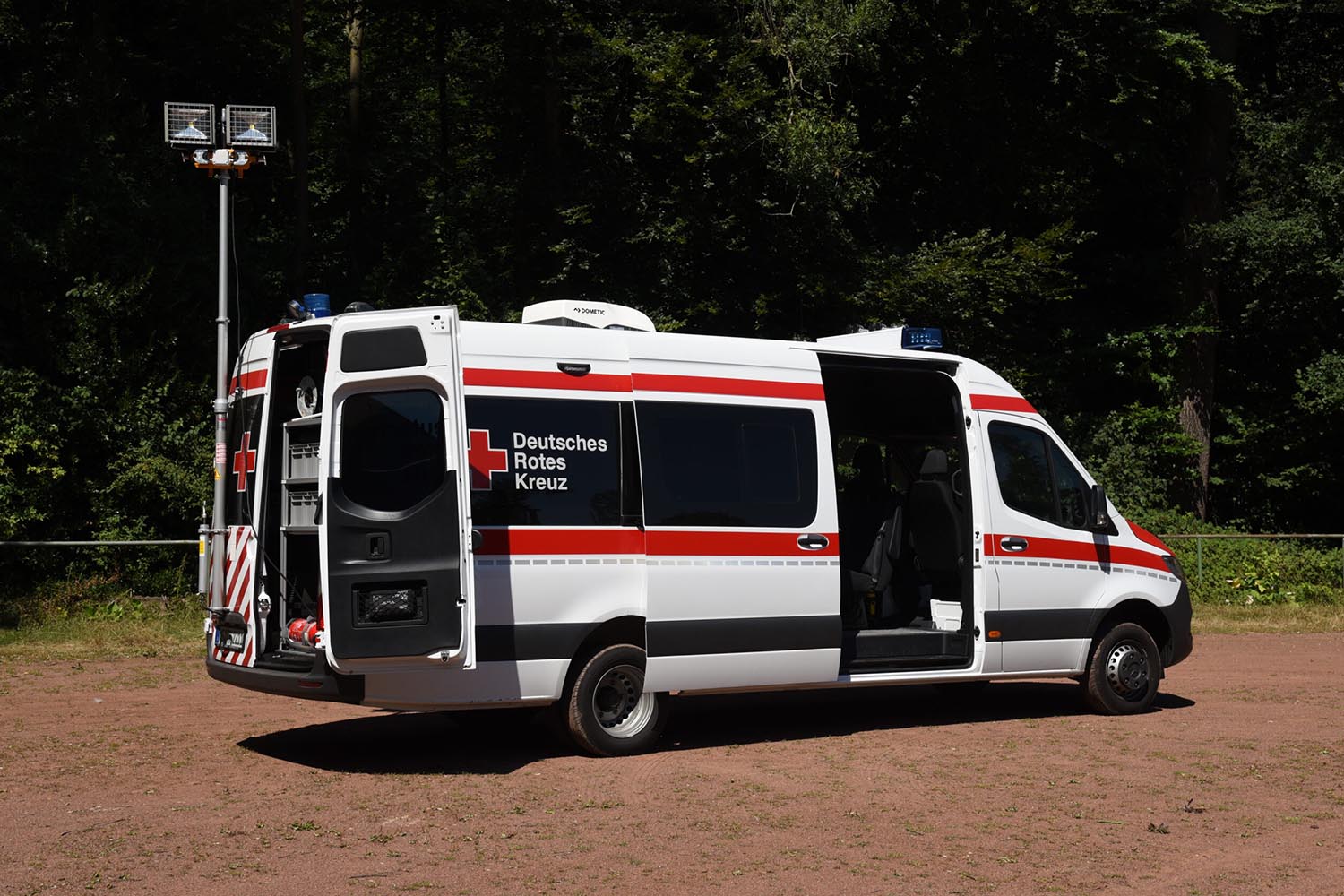

- Lighting mast with hand pump and 50 W (12-32V) LED headlight unit
The data at a glance
MB 516 CDI SprinterChassis
120 kW (163 HP) Euro 6Engine Power
| Product name | Mobile Command Unit 1 – 1606 |
|---|---|
| Chassis | MB 516 CDI Sprinter |
| Machine status | New |
| Engine power | 120 kW (163 HP) Euro 6 |
| Length [in mm] | 7440 |
| Width [in mm] | 1950 |
| Height [in mm] | 2870 |
| Wheelbase [in mm] | 4325 |
| Gross vehicle weight [in kg] | 5000 |
Crew
1+5

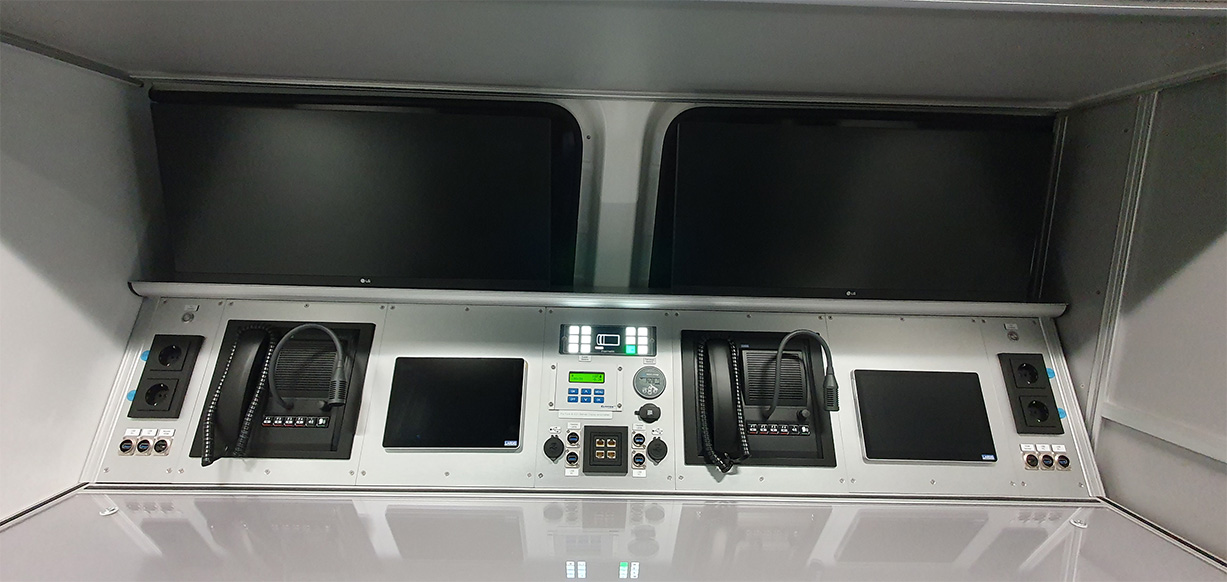

- ZBE communication management for radio, telephone and intercom, 2-place version
- 2 x 22" TFT screen in the radio room
- Network switch
- GSM / SIP gateway
- LTE and UMTS router
- Tetra BOS radio devices

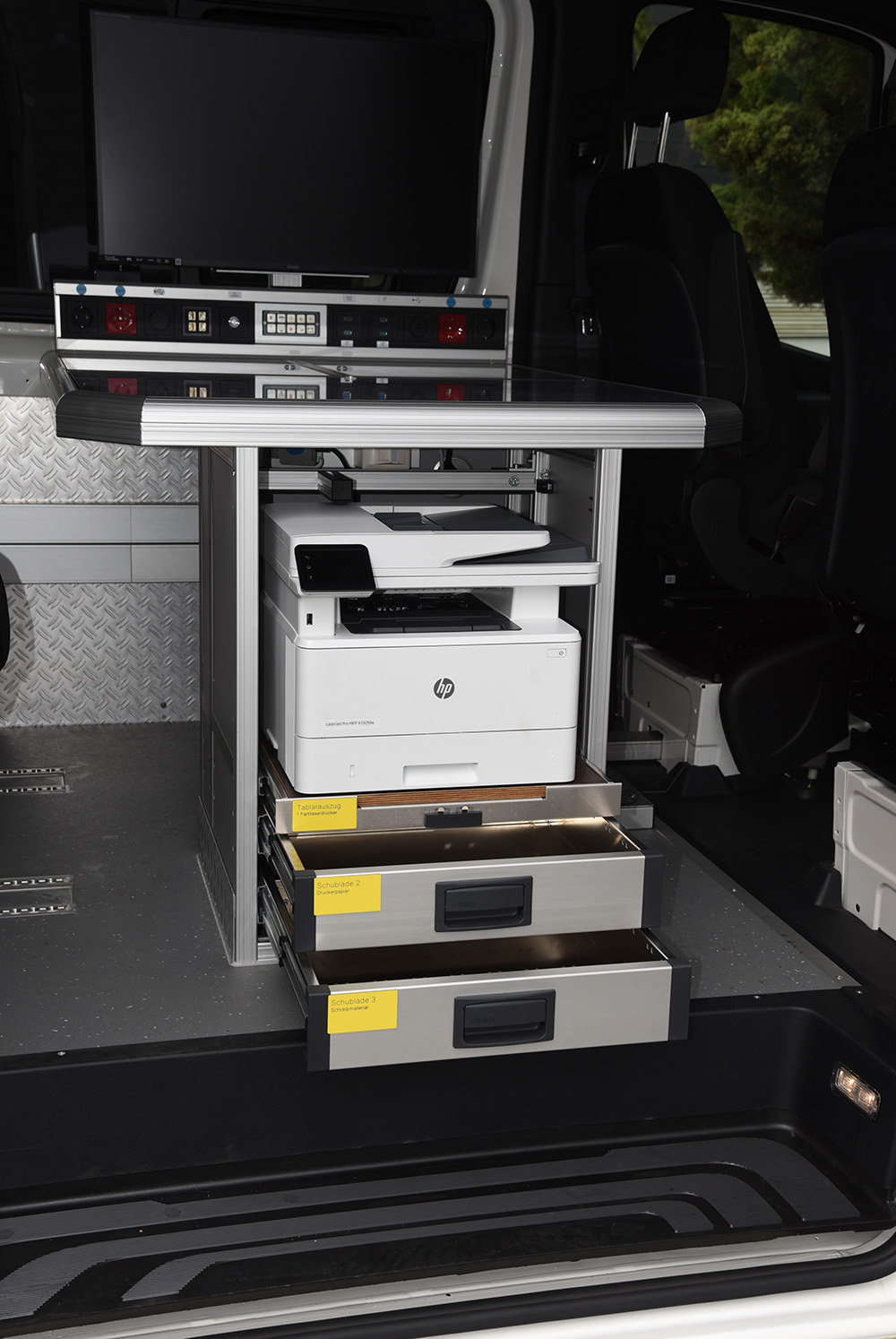

- Multifunction device: printer, scanner, fax and copier
- 32" TFT flat screen
