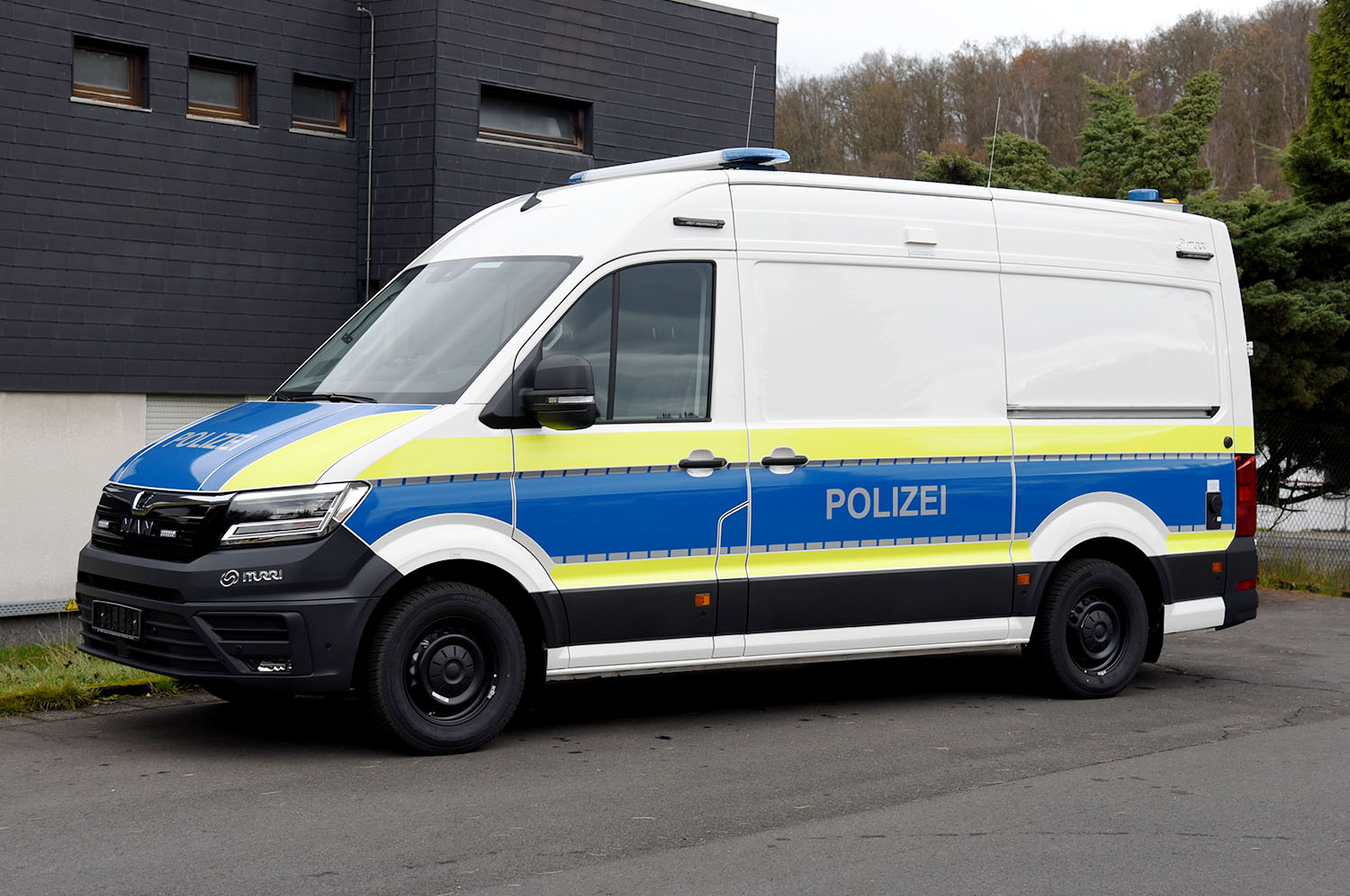

Mobile Command Unit 1
Einsatzleitwagen 1
The MCU 1 on a MAN chassis provides a reliable mobile command unit for efficient incident management. Equipped with modern communication technology and ergonomic workstations, it supports effective coordination and decision-making directly at the scene.
Structure
- MCU 1 radio table with radio console, note book compartment,technical cabinet and base cabinet
- Cabinet with sliding doors
- Key safe
- Rear shelf
- Special siren equipment
- Charger / inverter with USV
- 12 V lithium-ion battery management system
- Air conditioning
- Generator 3.8 kW
- Cable drum
- LED periphery lighting
| Product name | Mobile Command Unit 1 – 1651004 |
|---|---|
| Chassis | MAN TGE 3.180 4x4 SB |
| Machine status | New |
| Engine power | 130 kW (177 HP) EURO 6 |
| Length [in mm] | 6050 |
| Width [in mm] | 1950 |
| Height [in mm] | 2620 |
| Wheelbase [in mm] | 3640 |
| Gross vehicle weight [in kg] | 4200 |
RADIO- and CONFERENCE ROOM
- 3 x MRT Tetra BOS
- Tetra combiner - 2 communication workstations
- 1 Gigaset
- Multifunctional device DIN A 4
- Laptop with additional 24" (61 cm) monitor
- 2 connections for feeding external video signals to the monitor
- Router
- Digital radio-controlled clock
- Magnetic board with suction cup holder that can also be attached to the outside of the vehicle
