Firefighting Truck
The auxiliary firefighting group vehicle (HLF 20) is built according to DIN EN 1846, DIN 14502 and DIN 14530 - Part 27 and is mainly used for fire-fighting, for pumping water and for carrying out technical assistance.
With the AP3 superstructure, it is easily possible to produce a vehicle individually adapted to local conditions due to the large number of possible additional equipment options.
With the AP3 superstructure, the crew compartment and equipment compartment form a single unit based on the subframe. The subframe consists of welded steel profiles and is completely hot-dip galvanized.
The AP3 superstructure consists entirely of bolted anodized aluminum profiles and anodized aluminum sheets.
The sides are cambered and adapted to the cab contour. This construction method allows a variable interior design, in which subsequent changes are also easily possible.
Structure

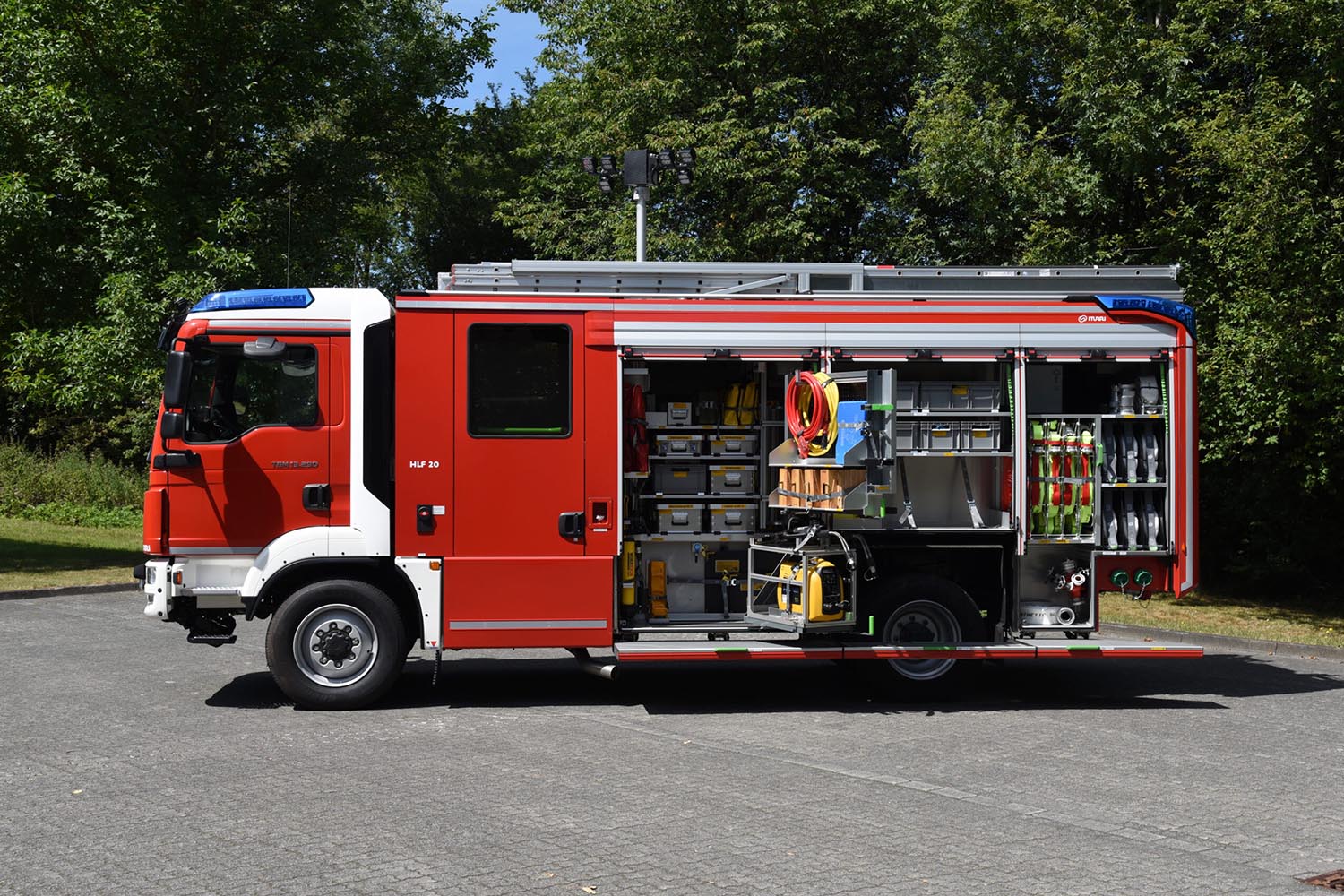

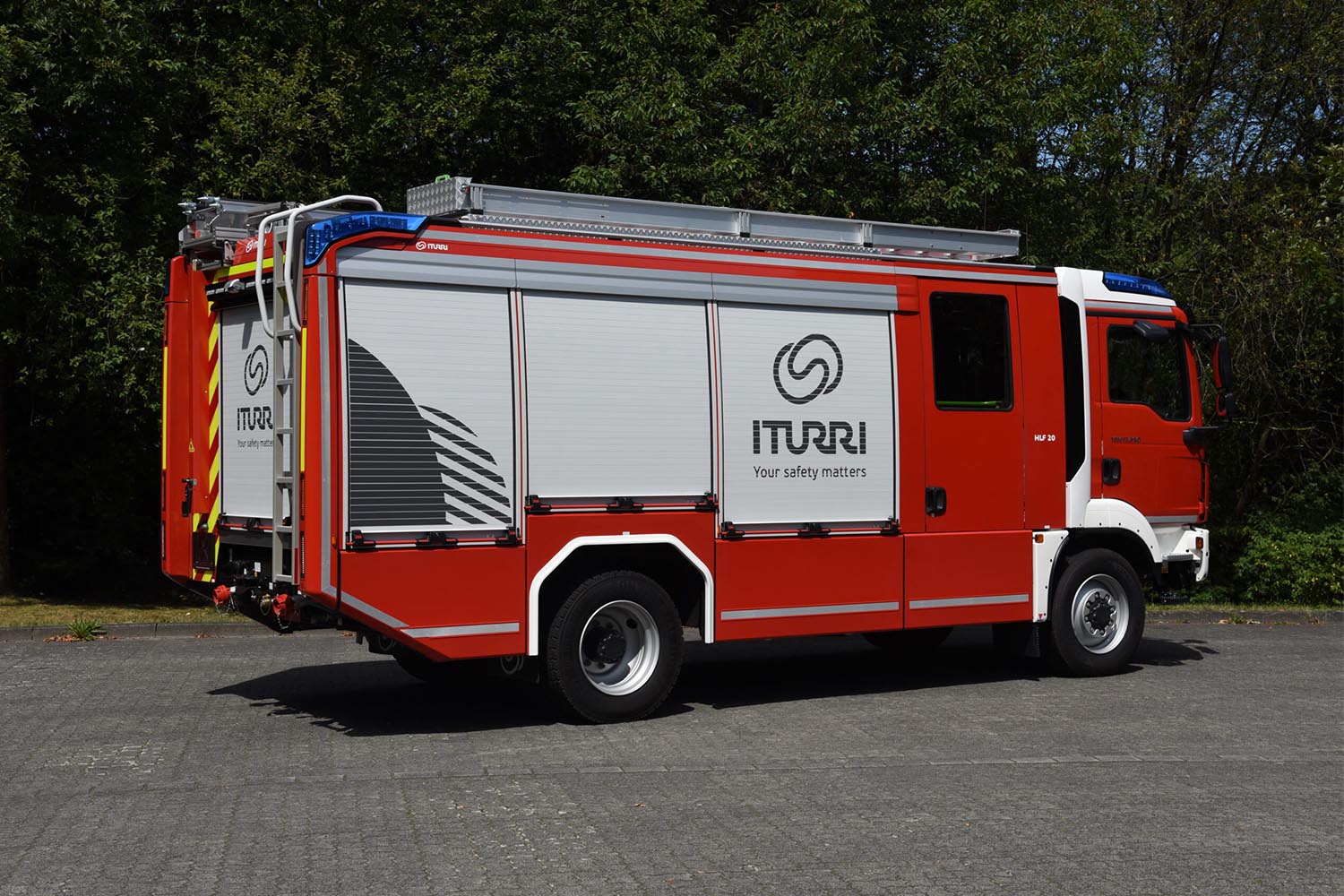

- AP3 bodywork with shutter system, accessible roof

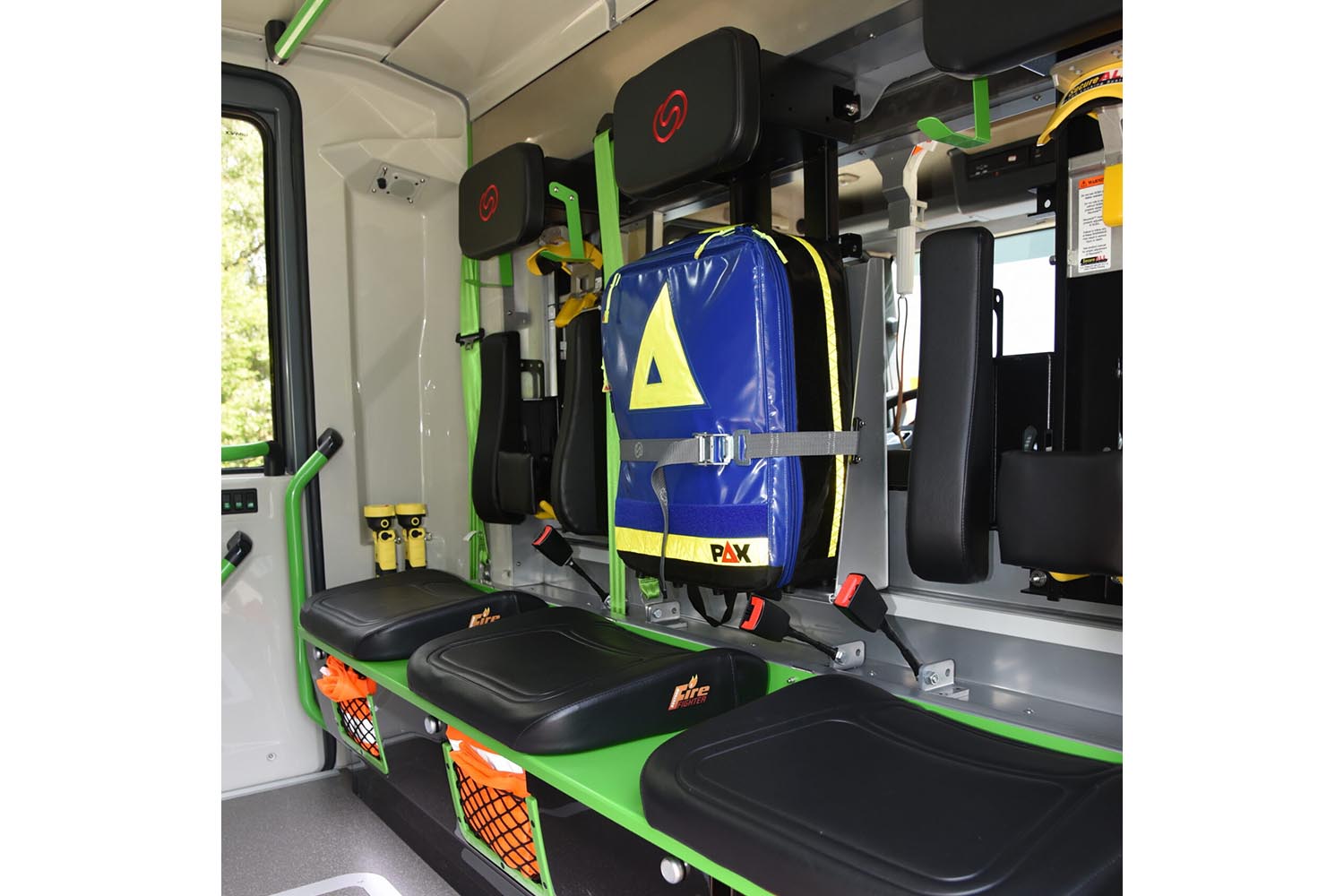

- 3 seats contrary to the driving direction, two seats are equipped with SCBA holder
- 4 seats in the direction of travel, two of them are equipped with SCBA holder
- Foldable fender steps
- LED periphery lighting
- Hygiene station
- Swivelling wall
- Installation for fast water discharge
- Storage of 3-parts scaling ladder
| Product name | Firefighting Truck – 81820 |
|---|---|
| Chassis | MAN TGM 13.290 4×4 BL FW |
| Machine status | New |
| Engine power | 213 kW (290 HP) Euro 6 |
| Length [in mm] | 7750 |
| Width [in mm] | 2500 |
| Height [in mm] | 3300 |
| Wheelbase [in mm] | 4250 |
| Gross vehicle weight [in kg] | 15500 |

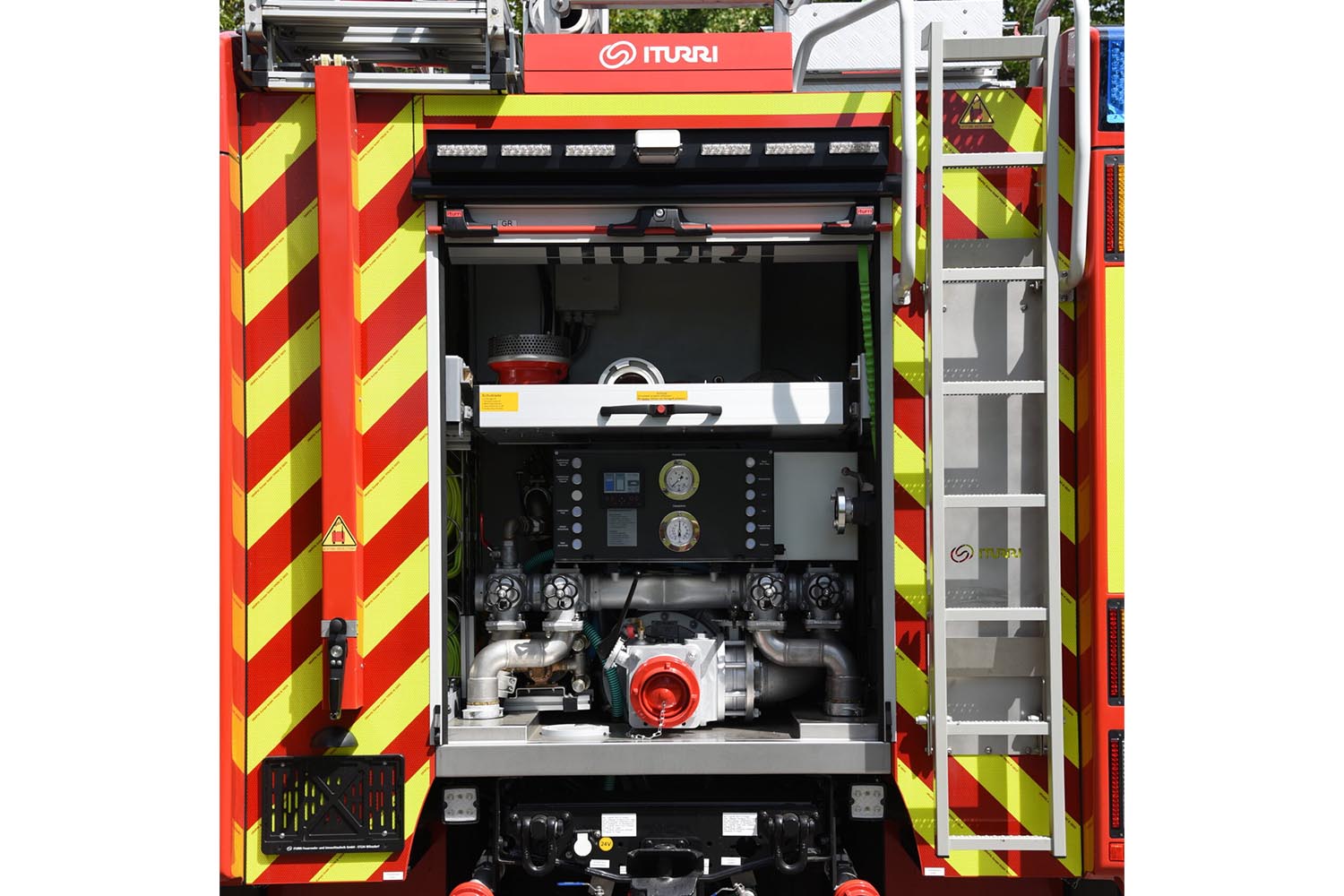

| Pump | FPN 10-2000 |
| Operation extinguishing system | Control button operation |
| Light mast | 6 x 50 W (24 V) LED headlights |
| Pressure control | E-Spume 24 |
| Water tank [in l] | 2000 |
| Foam [in l] | 120 |
Firefighting equipment according to German Standard
